Flange bearings

Model:

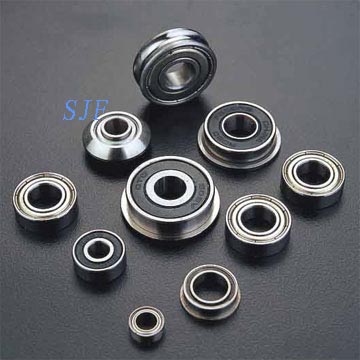

Bearings with a flange on the outer ring simplify axial location. These bearings are cost effective by not requiring spot facing when housing the end face.)

Online Enquiry

Flange bearings

(Bearings with a flange on the outer ring simplify axial location. These bearings are cost effective by not requiring spot facing when housing the end face.)

Metal Flanged series:

Type	Bore Diameter	Outer Diameter	Flange Outer Diameter		Width		Flange Width		Load Rating Cr(N)	Load Rating Cor(N)	Max.Speed
			Flange Outer Diameter		Width		Flange Width				Grease	Oil
			OPEN	ZZ	OPEN	ZZ	OPEN	ZZ			*1000rpm
F682 ZZ	2	5	6.1		1.5	2.3	0.5	0.6	169	50	85	100
MF 52 ZZ		5	6.2		2	2.5	0.6	0.6	169	50	85	100
F69 2ZZ		6	7.5		2.3	3	0.6	0.8	330	99	75	90
MF 62 ZZ		6	7.2		2.5	2.5	0.6	-	330	99	75	90
MF 72 ZZ		7	8.2		2.8	3	0.6	0.6	386	129	63	75
F602 ZZ		7	8.5		2.8	3.5	0.7	0.9	386	129	60	71
F682 XZZ	2.5	6	7.1		1.8	2.6	0.5	0.8	209	74	71	80
F692 XZZ		7	8.5		2.5	3.5	0.7	0.9	386	129	63	75
MF 82 X		8	9.2		2.5	-	0.6	-	558	180	60	67
F602 XZZ		8	9.5		2.8	4	0.7	0.9	552	177	60	71
MF 63 ZZ	3	6	7.2		2	2.5	0.6	0.6	209	74	71	80
F683ZZ		7	8.1		2	3	0.5	0.8	311	112	63	75
MF 83 ZZ		8	9.2		2.5	3	0.6	-	395	141	60	67
F693 ZZ		8	9.5		3	4	0.7	0.9	558	180	60	67
MF 93 ZZ		9	10.2	10.6	2.5	4	0.6	0.8	571	189	56	67
F603 ZZ		9	10.5		3	5	0.7	-	571	189	56	67
F623 ZZ		10	11.5		4	4	1	1	631	219	50	60
MF 74 ZZ	4	7	8.2		2	2.5	0.6	0.6	255	108	60	67
MF84 ZZ		8	9.2		2	3	0.6	0.6	395	141	56	67
F684 ZZ		9	10.3		2.5	4	0.6	1	641	227	53	63
MF 104 ZZ		10	11.2	11.6	3	4	0.6	0.8	711	272	48	56
F694 ZZ		11	12.5		4	4	1	1	957	350	48	56
F604 ZZ		12	13.5		4	4	1	1	957	350	48	56
F624 ZZ		13	15		5	5	1	1	1301	488	40	48
F634 ZZ		16	18		5	5	1	1	1340	523	36	43
MF 85 ZZ	5	8	9.2		2	2.5	0.6	0.6	218	90	53	63
MF95 ZZ		9	10.2		2.5	3	0.6	0.6	431	169	50	60
MF 105 ZZ		10	11.2	11.6	3	4	0.6	0.8	431	169	50	60
MF 115 ZZ		11	12.5		-	4	0.8	1	716	282	45	53
F685 ZZ		11	12.5		3	5	0.8	1	716	282	45	53
F695 ZZ		13	15		4	4	1	1	1077	432	43	50
F605 ZZ		14	16		5	5	1	1	1329	507	40	50
F625 ZZ		16	18		5	5	1	1	1729	675	36	43
F635 ZZ		19	22		6	6	1.5	1.5	2336	896	32	40
MF 106 ZZ	6	10	11.2		2.5	3	0.6	0.6	496	218	45	53
MF 126 ZZ		12	13.2	13.6	3	4	0.6	0.8	716	295	43	50
F686 ZZ		13	15		3.5	5	1	1.1	1082	442	40	50
F696 ZZ		15	17		5	5	1.2	1.2	1340	523	40	45
F606 ZZ		17	19		6	6	1.2	1.2	2263	846	38	45
F626 ZZ		19	22		6	6	1.5	1.5	2336	896	32	40
MF 117 ZZ	7	11	12.2		2.5	3	0.6	0.6	455	202	43	50
MF 137 ZZ		13	14.2	14.6	3	4	0.6	0.8	541	276	40	48
F687 ZZ		14	16		3.5	5	1	1.1	1173	513	40	50
F697 ZZ		17	19		5	5	1.2	1.2	1605	719	36	43
F607 ZZ		19	22		6	6	1.5	1.5	2336	896	36	43
F627 ZZ		22	25		7	7	1.5	1.5	3287	1379	30	36
MF 128 ZZ	8	12	13.2	13.6	2.5	3.5	0.6	0.8	543	274	40	48
MF 148 ZZ		14	15.6		3.5	4	0.8	0.8	817	386	38	45
F688 ZZ		16	18		4	5	1	1.1	1252	592	36	43
F698 ZZ		19	22		6	6	1.5	1.5	2237	917	36	43
F608 ZZ		22	25		7	7	1.5	1.5	3293	1379	34	40
F689 ZZ	9	17	19		4	5	1	1.1	1327	668	36	43
F699 ZZ	9	20	23		6	6	1.5	1.5	2467	1081	34	40
F6700ZZ	10	15	16.5	16.5	3	4	0.8	0.8	850	430	14	16
F6800ZZ		19	21		5	5	1	1	1700	800	35	42
F6900ZZ		22	25		6	6	1.5	1.5	2611	1223	31	40
F6701ZZ	12	18	19.5	19.5	4	4	0.8	0.8	922	512	12	14
F6801ZZ		21	23		5	5	0.8	1	1911	1041	33	39
F6901ZZ		24	26.5		6	6	1	1.5	2831	1411	31	36

Inch Flanged series:

Type	Bore Diameter	Outer Diameter	Flange Outer Diameter	Width		Flange Width		Load Rating Cr(N)	Load Rating Cor(N)	Max.Speed
				Width		Flange Width				Grease	Oil
				OPEN	ZZ	OPEN	ZZ			*1000rpm
FR 1-4 ZZ	1.984	6.350	7.518	2.380	3.571	0.584	0.787	284	96	67	80
FR 133 ZZ	2.380	4.762	5.944	1.588	2.380	0.457	0.787	144	53	80	95
FR 1-5 ZZ		7.938	9.119	2.779	3.571	0.584	0.787	552	176	60	71
FR 144 ZZ	3.175	6.350	7.518	2.380	2.779	0.584	0.787	284	96	67	80
FR 2-5 ZZ		7.938	9.119	2.779	3.571	0.584	0.787	558	180	60	67
FR 2-6 ZZ		9.525	10.719	2.779	3.571	0.584	0.787	640	227	53	63
FR 2 ZZ		9.525	11.176	3.967	3.967	0.762	0.762	631	219	56	67
FR 155 ZZ	3.967	7.938	9.119	2.779	3.175	0.584	0.914	359	150	53	63
FR 156 ZZ	4.762	7.938	9.119	2.779	3.175	0.584	0.914	359	150	53	63
FR 166 ZZ		9.525	10.719	3.175	3.175	0.584	0.787	709	272	50	60
FR 3 ZZ		12.700	14.351	4.978	4.978	1.067	1.067	1301	488	43	53
FR 168 ZZS	6.350	9.525	10.719	3.175	3.175	0.584	0.914	373	172	48	56
FR 188 ZZ		12.700	13.894	3.175	4.762	0.584	1.143	1082	442	40	50
FR 4 ZZ		15.875	17.526	4.978	4.978	1.067	1.067	1480	621	38	45
FR1810 ZZ	7.938	12.700	13.894	3.967	3.967	0.787	0.787	542	276	40	48
FR 6 ZZ	9.525	22.225	24.613	5.558	7.142	1.570	1.570	3332	1422	32	38
