Product Details |
|
 |
PC751300050CS |
|
|
|
| Model: |

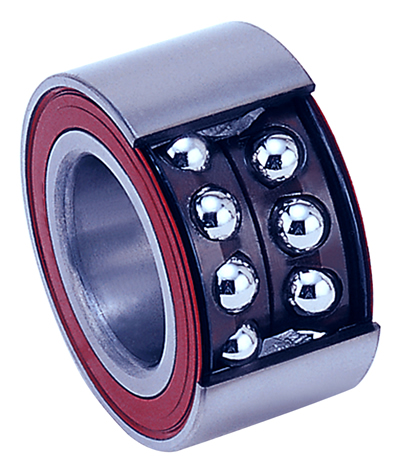

| With high rotary speed and precision, low noise and oscillation, they could withstand radial and axial load simultaneously. There is a contact angle between rings and balls, and they are available in 15, 25, 30 and 40 degree angles. The larger the contact angle is, the higher the radial load capacity is; the smaller the contact angle is, the more positive for high-speed operation. Furthermore, the self-alignment capacity of angular contact ball bearings is very small.
|
|
| |
|
| Item |
Size |
Weight |
| PC751300050CS |
75*130*50 |
2.51 |
| PC50720020CS |
50*72*20 |
0.214 |
| PC45750032CS |
45*75*32 |
0.985 |
| PC40680030CS |
40*68*30 |
0.392 |
| PC40660024CS |
40*66*24 |
0.258 |
| PC40620024/206CS |
40*62*24 |
0.195 |
| PC40620024CS |
40*62*24 |
0.211 |
| PC4062002064CS |
40*62*20.64 |
0.214 |
| PC406200206CS |
40*62*20.625 |
0.19 |
| PC40570024/20CS |
40*57*24 |
0.133 |
| PC40570024CS |
40*57*24 |
0.158 |
| PC405520024CS |
40*55*24 |
0.131 |
| PC40540017CS |
40*54*17 |
0.088 |
| PC38620024CS |
38*62*24 |
0.251 |
| PC38540017CS |
38*54*17 |
0.101 |
| PC356200277CS |
35*62*27.7 |
0.309 |
| PC35620021CS |
35*62*21 |
0.202 |
| PC35520023CS |
35*52*23 |
0.135 |
| PC35550020CSR1 |
35*55*20 |
0.143 |
| PC35500020CS |
35*50*20 |
0.098 |
| PC35520022CS |
35*52*22 |
0.129 |
| PC35520020CS |
35*52*20 |
0.118 |
| PC32550023CS |
32*55*23 |
0.188 |
| PC32520020/18CS |
32*52*20 |
0.135 |
| PC32470018CS |
32*47*18 |
0.081 |
| PC30620024CS |
30*62*24 |
0.302 |
| PC30620027CS |
30*62*27 |
0.339 |
| PC306200113CS |
30*62*11.3 |
0.171 |
| PC30550023CS |
30*55*23 |
0.2 |
| PC30550026CS |
30*55*26 |
0.224 |
| PC30520022CS |
30*52*22 |
0.157 |
| PC30500020CS |
30*50*20 |
0.136 |
| PC30470020CS |
30*47*20 |
0.106 |
| PC30470022CS |
30*47*22 |
0.116 |
| PC30470021/18CS |
30*47*21 |
0.101 |
| PC30470018CS |
30*47*18 |
0.094 |
| PC30460018/16CS |
30*46*18 |
0.09 |
| PC30450023CS |
30*45*23 |
0.101 |
| PC30450018CS |
30*45*18 |
0.08 |
| PC28520009CS |
28*52*9 |
0.088 |
| PC256200113CS |
25*62*11.3 |
0.021 |
| PC25520012CS |
25*52*12 |
0.018 | |
|
| |
|
