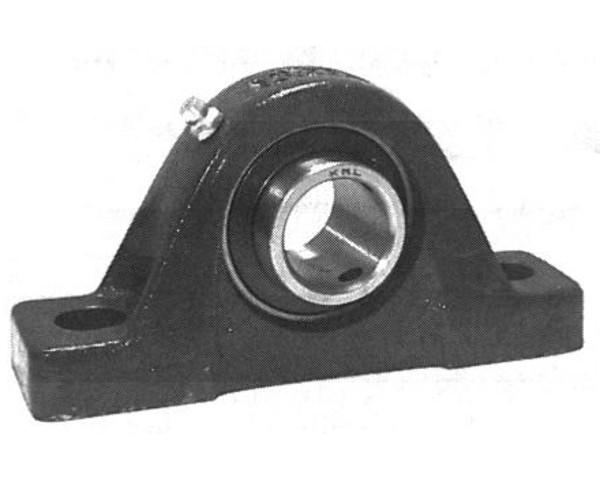

UCPE200 spherical bearings

Model:

Normal Duty Set Screw Locking Wide Inner Race Bearing Dual Seals High Grade Solid Base Cast Iron Housing Anti-Rotation Pin Greaseable

Online Enquiry

BearingUint No.	Shaft Dia d		Dimensinons(mm)										Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
			h	a	e	b	S2	S1	g	w	Bi	n	(mm)	(in)
	(in)	(mm)
UCPE201-8	1/2		30.2	124	95	31	15	11	14	57.1	26	10	M8	5/16	UCW201-8	PE203	0.45
UCPE202-9	9/16														UCW202-9
UCPE202-10	5/8														UCW202-10
UCPE203-11	11/16														UCW203-11
UCPE201		12													UCW201
UCPE202		15													UCW202
UCPE203		17													UCW203
UCPE204-12	3/4		33.3	127	95	38	16	13	15	65	31	12.7	M10	3/8	UC204-12	PE204	0.65
UCPE204		20													UC204
UCPE205-13	13/16	25	36.6	140	105	38	16	13	16	70	34	14.3	M10	3/8	UC205-13	PE205	0.75
UCPE205-14	7/8														UC205-14
UCPE205-15	15/16														UC205-15
UCPE205-16	1														UC205-16
UCPE205															UC205
UCPE206-17	1-1/16	30	42.9	165	121	48	21	17	18	83	38.1	15.9	M14	1/2	UC206-17	PE206	1.15
UCPE206-18	1-1/8														UC206-18
UCPE206-19	1-3/16														UC206-19
UCPE206-20	1-1/4														UC206-20
UCPE206															UC206
UCPE207-20	1-1/4	35	47.6	167	127	48	21	17	19	94	42.9	17.5	M14	1/2	UC207-20	PE207	1.30
UCPE207-21	1-5/16														UC207-21
UCPE207-22	1-3/8														UC207-22
UCPE207-23	1-7/16														UC207-23
UCPE207															UC207
UCPE208-24	1-1/2	40	49.2	184	137	54	25	17	19	100	49.2	19.0	M14	1/2	UC208-24	PE208	1.50
UCPE208-25	1-9/16														UC208-25
UCPE208															UC208
UCPE209-26	1-5/8	45	54	190	146	54	25	17	20	108	49.2	19.0	M14	1/2	UC209-26	PE209	1.75
UCPE209-27	1-11/16														UC209-27
UCPE209-28	1-3/4														UC209-28
UCPE209															UC209
UCPE210-29	1-13/16	50	57.2	206	159	60	25	20	22	114	51.6	19.0	M16	5/8	UC210-29	PE210	2.35
UCPE210-30	1-7/8														UC210-30
UCPE210-31	1-15/16														UC210-31
UCPE210-32	2														UC210-32
UCPE210															UC210
UCPE211-32	2	55	63.5	219	171	60	25	20	22	126	55.6	22.2	M16	5/8	UC211-32	PE211	2.60
UCPE211-33	2-1/16														UC211-33
UCPE211-34	2-1/8														UC211-34
UCPE211-35	2-3/16														UC211-35
UCPE211															UC211
UCPE212-36	2-1/4	60	69.8	241	184	70	25	20	25	138	65.1	25.4	M16	5/8	UC212-36	PE212	4.00
UCPE212-37	2-5/16														UC212-37
UCPE212-38	2-3/8														UC212-38
UCPE212-39	2-7/16														UC212-39
UCPE212															UC212
UCPE213-40	2-1/2	65	76.2	265	203	70	29	25	27	150	65.1	25.4	M20	3/4	UC213-40	PE213	4.77
UCPE213-41	2-9/16														UC213-41
UCPE213															UC213
UCPE214-42	2-5/8	70	79.4	266	210	72	31	25	27	156	74.6	30.2	M20	3/4	UC214-42	PE214	5.30
UCPE214-43	2-11/16														UC214-43
UCPE214-44	2-3/4														UC214-44
UCPE214															UC214
UCPE215-45	2-13/16	75	82.6	275	217	74	31	25	28	163	77.8	33.3	M20	3/4	UC215-45	PE215	6.00
UCPE215-46	2-7/8														UC215-46
UCPE215-47	2-15/16														UC215-47
UCPE215-48	3														UC215-48
UCPE215															UC215
