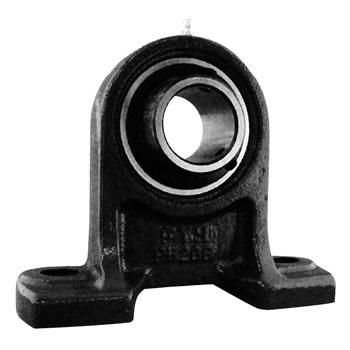

UCPH200 spherical bearings

Model:

Normal Duty Eccentric Locking Wide Inner Race Bearing Dual Seals High Grade Solid Base Cast Iron Housing Anti-Rotation Pin Greaseable

Online Enquiry

BearingUint No.	Shaft Dia d		Dimensinons(mm)										Bolt Used		Bearing No.	Housing No.	Housing Wt(kg)
			h	a	e	b	S2	S1	g	w	Bi	n	(mm)	(in)
	(in)	(mm)
UCPH201-8	1/2		70	127	95	40	19	13	15	101	31	12.7	M10	3/8	UC201-8	PH204	0.75
UCPH202-9	9/16														UC202-9
UCPH202-10	5/8														UC202-10
UCPH203-11	11/16														UC203-11
UCPH204-12	3/4														UC204-12
UCPH201		12													UC201
UCPH202		15													UC202
UCPH203		17													UC203
UCPH204		20													UC204
UCPH205-13	13/16	25	80	140	105	50	19	13	16	114	34.1	14.3	M10	3/8	UC205-13	PH205	1.0
UCPH205-14	7/8														UC205-14
UCPH205-15	15/16														UC205-15
UCPH205-16	1														UC205-16
UCPH205															UC205
UCPH206-17	1-1/16	30	90	165	121	50	21	17	18	130	38.1	15.9	M14	1/2	UC206-17	PH206	1.42
UCPH206-18	1-1/8														UC206-18
UCPH206-19	1-3/16														UC206-19
UCPH206-20	1-1/4														UC206-20
UCPH206															UC206
UCPH207-20	1-1/4	35	95	167	127	60	21	17	19	140	42.9	17.5	M14	1/2	UC207-20	PH207	1.55
UCPH207-21	1-5/16														UC207-21
UCPH207-22	1-3/8														UC207-22
UCPH207-23	1-7/16														UC207-23
UCPH207															UC207
UCPH208-24	1-1/2	40	100	184	137	70	25	17	19	149	49.2	19.0	M14	1/2	UC208-24	PH208	2.15
UCPH208-25	1-9/16														UC208-25
UCPH208															UC208
UCPH209-26	1-5/8	45	105	190	146	70	25	17	20	157	49.2	19.0	M14	1/2	UC209-26	PH209	2.31
UCPH209-27	1-11/16														UC209-27
UCPH209-28	1-3/4														UC209-28
UCPH209															UC209
UCPH210-29	1-13/16	50	110	206	159	70	25	20	22	165	51.6	19.0	M16	5/8	UC210-29	PH210	2.80
UCPH210-30	1-7/8														UC210-30
UCPH210-31	1-15/16														UC210-31
UCPH210-32	2														UC210-32
UCPH210															UC210
UCPH211-32	2	55	120	219	171	75	22	19	22	181	55.6	22.2	M16	5/8	UC211-32	PH211	4.4
UCPH211-33	2-1/16														UC211-33
UCPH211-34	2-1/8														UC211-34
UCPH211-35	2-3/16														UC211-35
UCPH211															UC211
UCPH212-36	2-1/4	60	130	235	184	85	23	19	25	197	65.1	25.4	M16	5/8	UC212-36	PH212	4.8
UCPH212-37	2-5/16														UC212-37
UCPH212-38	2-3/8														UC212-38
UCPH212-39	2-7/16														UC212-39
UCPH212															UC212
UCPH213-40	2-1/2	65	140	262	203	95	28	23	27	212	65.1	25.4	M20	3/4	UC213-40	PH213	5.6
UCPH213-41	2-9/16														UC213-41
UCPH213															UC213
UCPH214-42	2-5/8	70	150	268	210	105	28	23	28	225	74.6	30.2	M20	3/4	UC214-42	PH214	6.2
UCPH214-43	2-11/16														UC214-43
UCPH214-44	2-3/4														UC214-44
UCPH214															UC214
UCPH215-45	2-13/16	75	160	275	217	115	28	23	29	238	77.8	33.3	M20	3/4	UC215-45	PH215	7.4
UCPH215-46	2-7/8														UC215-46
UCPH215-47	2-15/16														UC215-47
UCPH215-48	3														UC215-48
UCPH215															UC215
UCPH216-50	3-1/8	80	170	290	232	125	28	23	30	253	82.6	33.3	M20	3/4	UC216-50	PH216	8.0
UCPH216															UC216
