Product Details |
|
 |

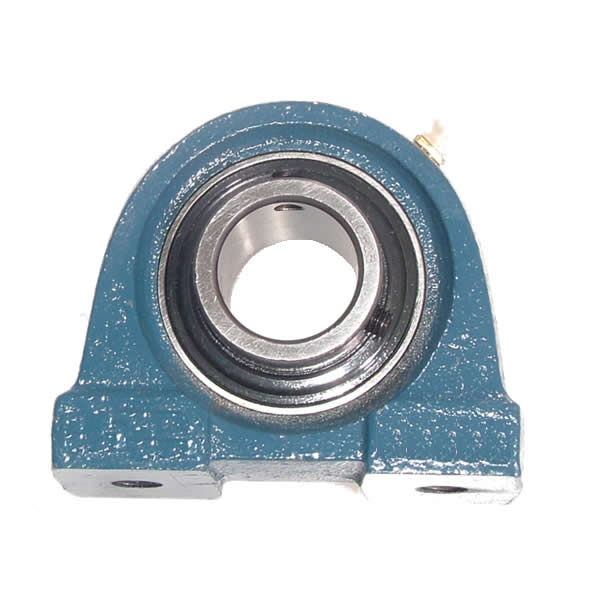

UCSHE200 spherical bearings |
|
|
|
| Model: |
| Normal Duty
Set Screw Locking
Wide Inner Race Bearings
Dual Seals
High Grade Solid Base Cast Iron Housing
Anti-Rotation Pin
Greaseable
|
|
| |
|
| Bearing Uint No. |
Shaft Dia d |
Dimensinons(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing Weight(Kg) |
| h |
a |
e |
b |
A1 |
t |
r |
w |
Bi |
n |
(mm) |
| (mm) |
UCSHE201
UCSHE202
UCSHE203 |
12
15
17 |
30.2 |
63 |
47 |
30 |
18 |
M8 |
10 |
57 |
31 |
12.7 |
M8 |
UC201
UC202
UC203 |
SHE203 |
0.32 |
| UCSHE204 |
20 |
33.3 |
65 |
50.8 |
32 |
19 |
M8 |
10 |
64 |
31 |
12.7 |
M8 |
UC204 |
SHE204 |
0.35 |
| UCSHE205 |
25 |
36.5 |
70 |
50.8 |
36 |
21 |
M10 |
12.5 |
70 |
34 |
14.3 |
M10 |
UC205 |
SHE205 |
0.41 |
| UCSHE206 |
30 |
42.9 |
98 |
76.2 |
40 |
25 |
M10 |
12.5 |
82 |
38.1 |
15.9 |
M10 |
UC206 |
SHE206 |
0.74 |
| UCSHE207 |
35 |
47.6 |
103 |
82.6 |
45 |
27 |
M10 |
12.5 |
93 |
42.9 |
17.5 |
M10 |
UC207 |
SHE207 |
0.96 |
| UCSHE208 |
40 |
49.2 |
116 |
88.9 |
48 |
30 |
M12 |
15 |
99 |
49.2 |
19 |
M12 |
UC208 |
SHE208 |
1.22 |
| UCSHE209 |
45 |
54 |
120 |
95.3 |
48 |
32 |
M12 |
15 |
107 |
49.2 |
19 |
M12 |
UC209 |
SHE209 |
1.45 |
| UCSHE210 |
50 |
57.2 |
135 |
101.6 |
54 |
34 |
M16 |
20 |
115 |
51.6 |
19 |
M16 |
UC210 |
SHE210 |
2.02 |
| UCSHE211 |
55 |
64 |
150 |
118 |
60 |
35 |
M16 |
20 |
125 |
55.6 |
22.2 |
M16 |
UC211 |
SHE211 |
2.1 |
| UCSHE212 |
60 |
69.9 |
150 |
118 |
60 |
42 |
M16 |
20 |
140 |
65.1 |
25.4 |
M16 |
UC212 |
SHE212 |
2.7 | |
|
| |
|
