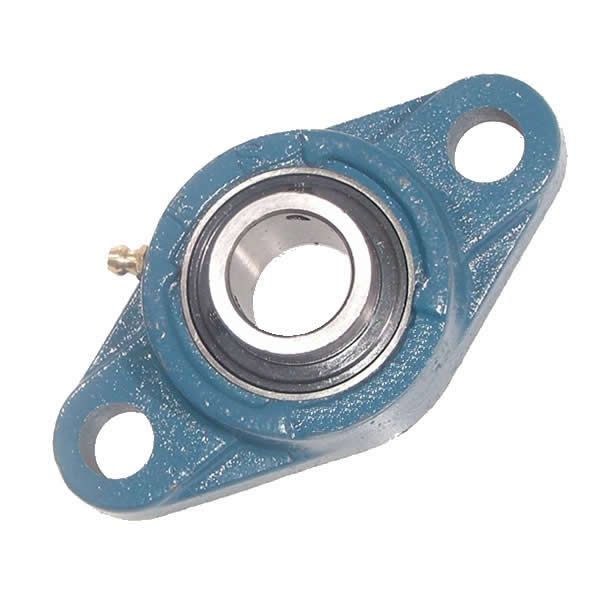

UCFL200 UCFL300 spherical bearings

Model:

Light Duty Set Screw Locking Narrow Inner Race/Flush Back Bearing Full Cover Steel Seals High Grade Cast Iron Housing Greaseable

Online Enquiry

BearingUint No.	Shaft Dia d		Dimensinons(mm)												Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
			a	e	i	g	l	s	b	t	z₁	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCFL201-8 UCFL202-9 UCFL202-10 UCFL203-11 UCFL201 UCFL202 UCFL203	1/2 9/16 5/8 11/16	12 15 17	99	76.5	15	13	25.5	11.5	57			31	26	10	M10	3/8	UCW201-8 UCW202-9 UCW202-10 UCW203-11 UCW201 UCW202 UCW203	FL203	0.25
UCFL201-8	1/2		113	90	15	12	25.5	12	60	2	40.5	33.3	31	12.7	M10	3/8	UC201-8	FL204	0.28
UCFL202-9	9/16																UC202-9
UCFL202-10	5/8																UC202-10
UCFL203-11	11/16																UC203-11
UCFL204-12	3/4																UC204-12
UCFL201		12															UC201
UCFL202		15															UC202
UCFL203		17															UC203
UCFL204		20															UC204
UCFL205-13	13/16	25	130	99	16	14	27	16	68	2	44.5	35.7	34.1	14.3	M14	1/2	UC205-13	FL205	0.4
UCFL205-14	7/8																UC205-14
UCFL205-15	15/16																UC205-15
UCFL205-16	1																UC205-16
UCFL205																	UC205
UCFL206-17	1-1/16	30	148	117	18	14	31	16	80	2	49	40.2	38.1	15.9	M14	1/2	UC206-17	FL206	0.54
UCFL206-18	1-1/8																UC206-18
UCFL206-19	1-3/16																UC206-19
UCFL206-20	1-1/4																UC206-20
UCFL206																	UC206
UCFL207-20	1-1/4	35	161	130	19	16	34	16	90	3	55	44.4	42.9	17.5	M14	1/2	UC207-20	FL207	0.65
UCFL207-21	1-5/16																UC207-21
UCFL207-22	1-3/8																UC207-22
UCFL207-23	1-7/16																UC207-23
UCFL207																	UC207
UCFL208-24	1-1/2	40	175	144	21	16	36	16	100	3	62	51.2	49.2	19	M14	1/2	UC208-24	FL208	0.8
UCFL208-25	1-9/16																UC208-25
UCFL208																	UC208
UCFL209-26	1-5/8	45	188	148	22	18	38	19	108	3	63	52.2	49.2	19	M16	5/8	UC209-26	FL209	1.15
UCFL209-27	1-11/16																UC209-27
UCFL209-28	1-3/4																UC209-28
UCFL209																	UC209
UCFL210-29	1-13/16	50	197	157	22	18	40	19	115	3	66.5	54.6	51.6	19	M16	5/8	UC210-29	FL210	1.25
UCFL210-30	1-7/8																UC210-30
UCFL210-31	1-15/16																UC210-31
UCFL210-32	2																UC210-32
UCFL210																	UC210
UCFL211-32	2	55	224	184	25	20	43	19	130	4	71	58.4	55.6	22.2	M16	5/8	UC211-32	FL211	1.85
UCFL211-33	2-1/16																UC211-33
UCFL211-34	2-1/8																UC211-34
UCFL211-35	2-3/16																UC211-35
UCFL211																	UC211
UCFL212-36	2-1/4	60	250	202	29	20	48	23	140	4	80	68.7	65.1	25.4	M20	3/4	UC212-36	FL212	2.10
UCFL212-37	2-5/16																UC212-37
UCFL212-38	2-3/8																UC212-38
UCFL212-39	2-7/16																UC212-39
UCFL212																	UC212
UCFL213-40	2-1/2	65	258	210	30	24	50	23	155	4	83.5	69.7	65.1	25.4	M20	3/4	UC213-40	FL213	2.8
UCFL213-41	2-9/16																UC213-41
UCFL213																	UC213
UCFL214-42	2-5/8	70	265	216	31	24	54	23	160			75.4	74.6	30.2	M20	3/4	UC214-42	FL214	3.2
UCFL214-43	2-11/16																UC214-43
UCFL214-44	2-3/4																UC214-44
UCFL214																	UC214
UCFL215-45	2-13/16	75	275	225	34	24	56	23	165			78.5	77.8	33.3	M20	3/4	UC215-45	FL215	2.8
UCFL215-46	2-7/8																UC215-46
UCFL215-47	2-15/16																UC215-47
UCFL215-48	3																UC215-48
UCFL215																	UC215
UCFL216-50	3-1/8	80	290	233	34	24	58	25	180			83.3	82.6	33.3	M22	7/8	UC216-50	FL216	3.53
UCFL216																	UC216
UCFL217-52	3-1/4	85	305	248	36	26	63	25	190			87.6	85.7	34.1	M22	7/8	UC217-52	FL217	5.5
UCFL217																	UC217
UCFL218-56	3-1/2	90	320	265	40	26	68	25	205			96.3	96	39.7	M22	7/8	UC218-56	FL218	6.0
UCFL218																	UC218

ucfl300

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Weight (kg)

a e i g l s b z Bi n (mm) (in)

(in) (mm)

UCFL305-14 7/8 25 150 113 16 13 29 19 80 39 38 15 M16 5/8 UC305-14 FL305 1.2

UCFL305-15 15/16 UC305-15

UCFL305-16 1 UC305-16

UCFL305 UC305

UCFL306-18 1-1/8 30 180 134 18 15 32 23 90 44 43 17 M20 3/4 UC306-18 FL306 1.7

UCFL306-19 1-3/16 UC306-19

UCFL306 UC306

UCFL307-20 1-1/4 35 185 141 20 16 36 23 100 49 48 19 M20 3/4 UC307-20 FL307 2.2

UCFL307-21 1-5/16 UC307-21

UCFL307-22 1-3/8 UC307-22

UCFL307-23 1-7/16 UC307-23

UCFL307 UC307

UCFL308-24 1-1/2 40 200 158 23 17 40 23 112 56 52 19 M20 3/4 UC308-24 FL308 2.9

UCFL308-25 1-9/16 UC308-25

UCFL308 UC308

UCFL309-26 1-5/8 45 230 177 25 18 44 25 125 60 57 22 M22 7/8 UC309-26 FL309 3.6

UCFL309-27 1-11/16 UC309-27

UCFL309-28 1-3/4 UC309-28

UCFL309 UC309

UCFL310-30 1-7/8 50 240 187 28 19 48 25 140 67 61 22 M22 7/8 UC310-30 FL310 4.7

UCFL310-31 1-15/16 UC310-31

UCFL310 UC310

UCFL311-32 2 55 250 198 30 20 52 25 150 71 66 25 M22 7/8 UC311-32 FL311 5.7

UCFL311-34 2-1/8 UC311-34

UCFL311-35 2-3/16 UC311-35

UCFL311 UC311

UCFL312-36 2-1/4 60 270 212 33 22 56 31 160 78 71 26 M27 1 UC312-36 FL312 6.8

UCFL312-38 2-3/8 UC312-38

UCFL312-39 2-7/16 UC312-39

UCFL312 UC312

UCFL313-40 2-1/2 65 295 240 33 25 58 31 175 78 75 30 M27 1 UC313-40 FL313 7.8

UCFL313 UC313

UCFL314-44 2-3/4 70 315 250 36 28 61 35 185 81 78 33 M30 1-1/8 UC314-44 FL314 10

UCFL314 UC314

UCFL315-48 3 75 320 260 39 30 66 35 195 89 82 32 M30 1-1/8 UC315-48 FL315 12

UCFL315 UC315

UCFL316-50 3-1/8 80 355 285 38 32 68 38 210 90 86 34 M33 1-1/4 UC316-50 FL316 13.7

UCFL316 UC316

UCFL317-52 3-1/4 85 370 300 44 32 74 38 220 100 96 40 M33 1-1/4 UC317-52 FL317 15.4

UCFL317 UC317

UCFL318-56 3-1/2 90 385 315 44 36 76 38 235 100 96 40 M33 1-1/4 UC318-56 FL318 19.0

UCFL318 UC318

UCFL319-60
UCFL319 3-3/4
95 405 330 59 40 94 41 250 121 103 41 M36 UC319-60
UC319 FL319 20.60

UCFL320-64
UCFL320 4
100 440 360 59 40 94 44 270 125 108 42 M39 UC320-64
UC320 FL320 25.70

UCFL321 105 440 360 59 40 94 44 270 127 112 44 M39 UC321 FL321 27.00

UCFL322 110 470 390 60 42 96 44 300 131 117 46 M39 UC322 FL322 38.00

UCFL324 120 520 430 65 48 110 47 330 140 126 51 M42 UC324 FL324 43.67

UCFL326 130 550 460 65 50 115 47 360 146 135 54 M42 UC326 FL326 61.30

UCFL328 140 600 500 75 60 125 51 400 161 145 59 M45 UC328 FL328 90.00
