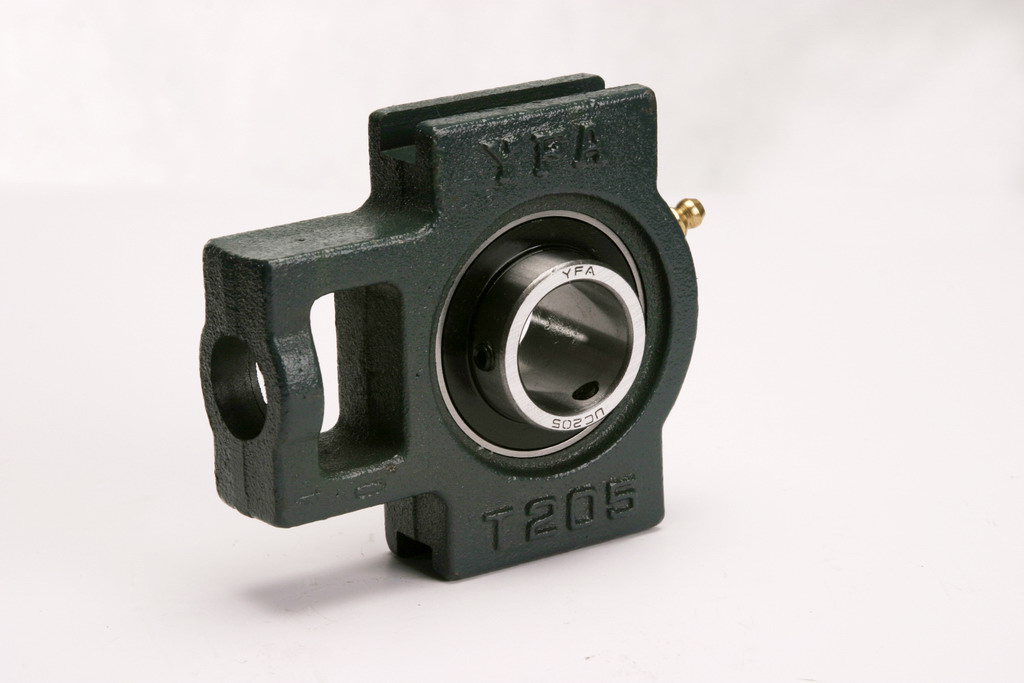

UCT200 UCT300 UCTX00 SERIES

Model:

Normal Duty Set Screw Locking Wide Inner Race Bearing Dual Seals High Grade Solid Cast Iron Housing Anti-Rotation Pin Greaseable

Online Enquiry

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)																	Bearing No.	Housing No.	Weight(kg)
Bearing Unit NO.	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	t	z	Bi	n	Bearing No.	Housing No.	Weight(kg)
UCT201-8 UCT202-9 UCT202-10 UCT203-11 UCT204-12 UCT201 UCT202 UCT203 UCT204	1/2 9/16 5/8 11/16	12 15 17 20	16	10	51	32	19	51	12	76	89	94	32	21	61	2	51	31	12.7	UC201-8 UC202-9 UC202-10 UC203-11 UC204-12 UC201 UC202 UC203 UC204	T204	0.56


UCT205-13 UCT205-14 UCT205-15 UCT205-16 UCT205	13/16 7/8 15/16 1	25	16	10	51	32	19	51	12	76	89	97	32	24	62	2	57	34.1	14.3	UC205-13 UC205-14 UC205-15 UC205-16 UC205	T205	0.63
UCT206-17 UCT206-18 UCT206-19 UCT206-20 UCT206	1-1/16 1-1/8 1-3/16 1-1/4	30	16	10	56	37	22	57	12	89	102	113	37	28	70	2	62	38.1	15.9	UC206-17 UC206-18 UC206-19 UC206-20 UC206	T206	0.95
UCT207-20 UCT207-21 UCT207-22 UCT207-23 UCT207	1-1/4 1-5/16 1-3/8 1-7/16	35	16	13	64	37	22	64	12	89	102	129	37	30	78	3	72	42.9	17.5	UC207-20 UC207-21 UC207-22 UC207-23 UC207	T207	1.09
UCT208-24 UCT208-25 UCT208	1-1/2 1-9/16	40	19	16	83	49	29	83	16	102	114	144	49	33	88	3	82	49.2	19	UC208-24 UC208-25 UC208	T208	1.72
UCT209-26 UCT209-27 UCT209-28 UCT209	1-5/8 1-11/16 1-3/4	45	19	16	83	49	29	83	16	102	117	144	49	35	87	3	82	49.2	19	UC209-26 UC209-27 UC209-28 UC209	T209	1.75
UCT210-29 UCT210-30 UCT210-31 UCT210-32 UCT210	1-13/16 1-7/8 1-15/16 2	50	19	16	83	49	29	86	16	102	117	149	49	37	90	3	87	51.6	19	UC210-29 UC210-30 UC210-31 UC210-32 UC210	T210	1.75
UCT211-32 UCT211-33 UCT211-34 UCT211-35 UCT211	2 2-1/16 2-1/8 2-3/16	55	25	19	102	64	35	95	22	130	146	171	64	38	106	4	92	55.6	22.2	UC211-32 UC211-33 UC211-34 UC211-35 UC211	T211	2.8
UCT212-36 UCT212-37 UCT212-38 UCT212-39 UCT212	2-1/4 2-5/16 2-3/8 2-7/16	60	32	19	102	64	35	102	22	130	146	194	64	42	119	4	102	65.1	25.4	UC212-36 UC212-37 UC212-38 UC212-39 UC212	T212	3.4
UCT213-40 UCT213-41 UCT213	2-1/2 2-9/16	65	32	21	111	70	41	121	26	151	167	224	70	44	137	4	107	65.1	25.4	UC213-40 UC213-41 UC213	T213	5
UCT214-42 UCT214-43 UCT214-44 UCT214	2-5/8 2-11/16 2-3/4	70	32	21	111	70	41	121	26	151	167	224	70	46	137			74.6	30.2	UC214-42 UC214-43 UC214-44 UC214	T214	4.7
UCT215-45 UCT215-46 UCT215-47 UCT215-48 UCT215	2-13/16 2-7/8 2-15/16 3	75	32	21	111	70	41	121	26	151	167	232	70	48	140			77.8	33.3	UC215-45 UC215-46 UC215-47 UC215-48 UC215	T215	5.1
UCT216-50 UCT216	3-1/8	80	32	21	111	70	41	121	26	165	184	235	70	51	140			82.6	33.3	UC216-50 UC216	T216	5.5
UCT217-52 UCT217	3-1/4	85	38	29	124	73	48	157	30	173	198	260	73	54	162			85.7	34.1	UC217-52 UC217	T217	7.4
UCT218-56 UCT218	3-1/2	90	40	30	130	80	48	140	30	190	215	275	80	55	170			96	39.7	UC218-56 UC218	T218	10.2

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)															Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n	Bearing No.	Housing No.	Housing Wt (kg)
UCT305-14 UCT305-15 UCT305-16 UCT305	7/8 15/16 1	25	16	12	62	36	26	65	12	80	89	122	36	26	76	38	15	UC305-14 UC305-15 UC305-16 UC305	T305	1.05


UCT306-18 UCT306-19 UCT306	1-1/8 1-3/16	30	18	14	70	41	28	74	16	90	100	137	41	28	85	43	17	UC306-18 UC306-19 UC306	T306	1.24
UCT307-20 UCT307-21 UCT307-22 UCT307-23 UCT307	1-1/4 1-5/16 1-3/8 1-7/16	35	20	15	75	45	30	80	16	100	111	150	45	32	94	48	19	UC307-20 UC307-21 UC307-22 UC307-23 UC307	T307	1.69
UCT308-24 UCT308-25 UCT308	1-1/2 1-9/16	40	22	17	83	50	32	89	18	112	124	162	50	34	100	52	19	UC308-24 UC308-25 UC308	T308	2.04
UCT309-26 UCT309-27 UCT309-28 UCT309	1-5/8 1-11/16 1-3/4	45	24	18	90	55	34	97	18	125	138	178	55	38	110	57	22	UC309-26 UC309-27 UC309-28 UC309	T309	2.72
UCT310-30 UCT310-31 UCT310	1-7/8 1-15/16	50	27	20	98	61	37	106	20	140	151	191	61	40	117	61	22	UC310-30 UC310-31 UC310	T310	3.35
UCT311-32 UCT311-34 UCT311-35 UCT311	2 2-1/8 2-3/16	55	29	21	105	66	39	115	22	150	163	207	66	44	127	66	25	UC311-32 UC311-34 UC311-35 UC311	T311	4.33
UCT312-36 UCT312-38 UCT312-39 UCT312	2-1/4 2-3/8 2-7/16	60	31	23	113	71	41	123	22	160	178	220	71	46	135	71	26	UC312-36 UC312-38 UC312-39 UC312	T312	5
UCT313-40 UCT313	2-1/2	65	32	25	116	71	43	134	26	170	190	238	80	50	146	75	30	UC313-40 UC313	T313	6
UCT314-44 UCT314	2-3/4	70	36	25	130	85	46	140	26	180	202	252	90	52	155	78	33	UC314-44 UC314	T314	7.05
UCT315-48 UCT315	3	75	36	25	132	85	46	150	26	192	216	262	90	55	160	82	32	UC315-48 UC315	T315	9.28
UCT316-50 UCT316	3-1/8	80	42	28	150	98	53	160	30	204	230	282	102	60	174	86	34	UC316-50 UC316	T316	10.03
UCT317-52 UCT317	3-1/4	85	42	30	152	98	53	170	32	214	240	298	102	64	183	96	40	UC317-52 UC317	T317	13.3
UCT318-56 UCT318	3-1/2	90	46	30	160	106	57	175	32	228	255	312	110	66	192	96	40	UC318-56 UC318	T318	14.1
UCT319-60 UCT319	3-3/4	95	46	31	165	106	57	180	35	240	270	322	110	72	197	103	41	UC319-60 UC319	T319	16.3
UCT320-64 UCT320	4	100	48	32	175	115	59	200	35	260	290	345	120	75	210	108	42	UC320-64 UC320	T320	21.2
UCT321		105	48	32	175	115	59	200	35	260	290	345	120	75	210	112	44	UC321	T321	19.8
UCT322		110	52	38	185	125	65	215	38	285	320	385	130	80	235	117	46	UC322	T322	25.7
UCT324		120	60	42	210	140	70	230	45	320	355	432	140	90	267	126	51	UC324	T324	36.5
UCT326		130	65	45	220	150	75	240	50	350	385	465	150	100	285	135	54	UC326	T326	46
UCT328		140	70	50	230	160	80	255	50	380	415	515	155	100	315	145	59	UC328	T328	55.5

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)															Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n	Bearing No.	Housing No.	Housing Wt (kg)
UCTX05-14 UCTX05-15 UCTX05-16 UCTX05	7/8 15/16 1	25	16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	UCX05-14 UCX05-15 UCX05-16 UCX05	TX05	1.01


UCTX06-18 UCTX06-19 UCTX06-20 UCTX06	1-1/8 1-3/16 1-1/4	30	16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	UCX06-18 UCX06-19 UCX06-20 UC306	TX06	1.12
UCTX07-20 UCTX07-22 UCTX07-23 UCTX07	1-1/4 1-3/8 1-7/16	35	19	15	83	49	29	83	16	102	114	144	49	36	88	49.2	19	UCX07-20 UCX07-22 UCX07-23 UC307	TX07	1.78
UCTX08-24 UCTX08	1-1/2	40	19	15	83	49	29	83	16	102	117	144	49	36	87	49.2	19	UCX08-24 UCX08	TX08	1.67
UCTX09-26 UCTX09-27 UCTX09-28 UCTX09	1-5/8 1-11/16 1-3/4	45	19	16	83	49	29	86	16	102	117	149	49	38	90	51.6	19	UCX09-26 UCX09-27 UCX09-28 UCX09	TX09	1.8
UCTX10-30 UCTX10-31 UCTX10-32 UCTX10	1-7/8 1-15/16 2	50	25	19	102	64	35	95	22	130	146	171	64	42	106	55.6	22.2	UCX10-30 UCX10-31 UCX10-32 UCX10	TX10	2.95
UCTX11-34 UCTX11-35 UCTX11	2-1/8 2-3/16 2-1/4	55	32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	UCX11-34 UCX11-35 UCX11	TX11	3.3
UCTX12-38 UCTX12-39 UCTX12	2-3/8 2-7/16	60	32	21	111	70	41	121	26	151	167	224	70	48	137	65.1	25.4	UCX12-38 UCX12-39 UCX12	TX12	5.33
UCTX13-40 UCTX13	2-1/2	65	32	21	111	70	41	121	26	151	167	224	70	48	137	74.6	30.2	UCX13-40 UCX13	TX13	5.15
UCTX14-43 UCTX14-44 UCTX14	2-11/16 2-3/4	70	32	21	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	UCX14-43 UCX14-44 UCX14	TX14	5.23
UCTX15-47 UCTX18-48 UCTX15	2-15/16 3	75	32	21	111	70	41	121	28	165	184	235	70	48	140	82.6	33.3	UCX15-47 UCX15-48 UCX15	TX15	5.29
UCTX16-50 UCTX16	3-1/8	80	38	28	124	73	48	157	28	173	198	260	73	54	162	85.7	34.1	UCX16-50 UCX16	TX16	7.21
UCTX17-52 UCTX17-55 UCTX17	3-1/4 3-7/16	85	38	28	124	73	48	157	28	173	198	260	73	54	162	96	39.7	UCX17-52 UCX17-55 UCX17	TX17	7.18
