Product Details |
|
 |

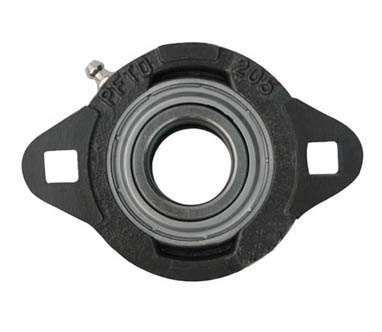

SBFW200 SBFX200 SERIES |
|
|
|
| Model: |
| Light Duty
Set Screw Locking
Narrow Inner Race/Flush Back Bearing
Full Cover Steel Seals
High Grade Cast Iron Housing
Greaseable
|
|
| |
|
 |
 |
| Bearing Unit NO. |
Shaft Dia d |
Dimensions(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing
Wt (kg) |
| (in) |
(mm) |
a |
e |
i |
l |
s |
b |
z |
Bi |
n |
(mm) |
(in) |
SBFW201-8
SBFW202-9
SBFW202-10
SBFW203-11
SBFW201
SBFW202
SBFW203 |
1/2
9/16
5/8
11/16
|
12
15
17 |
81 |
63.5 |
8.5 |
15 |
7 |
58.7 |
24.5 |
22 |
6 |
M6 |
1/4 |
SB201-8
SB202-9
SB202-10
SB203-11
SB201
SB202
SB203 |
FW203 |
0.2 |
SBFW204-12
SBFW204 |
3/4
|
20 |
90.5 |
71.4 |
9.5 |
17 |
9 |
66.5 |
27.5 |
25 |
7 |
M8 |
5/16 |
SB204-12
SB204 |
FW204 |
0.25 |
SBFW205-13
SBFW205-14
SBFW205-15
SBFW205-16
SBFW205 |
13/16
7/8
15/16
1
|
25 |
97 |
76.2 |
9.5 |
17.5 |
9 |
71 |
29 |
27 |
7.5 |
M8 |
5/16 |
SB205-13
SB205-14
SB205-15
SB205-16
SB205 |
FW205 |
0.3 |
SBFW206-17
SBFW206-18
SBFW206-19
SBFW206-20
SBFW206 |
1-1/16
1-1/8
1-3/16
1-1/4
|
30 |
112.5 |
90.5 |
11.5 |
20.5 |
11.5 |
84 |
33.5 |
30 |
8 |
M10 |
3/8 |
SB206-17
SB206-18
SB206-19
SB206-20
SB206 |
FW206 |
0.4 |
SBFW207-20
SBFW207-21
SBFW207-22
SBFW207-23
SBFW207 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
126 |
100 |
12.5 |
22 |
11.5 |
94 |
36 |
32 |
8.5 |
M10 |
3/8 |
SB207-20
SB207-21
SB207-22
SB207-23
SB207 |
FW207 |
0.5 |
SBFW208-24
SBFW208-25
SBFW208 |
1-1/2
1-9/16
|
40 |
148 |
119 |
14.5 |
25 |
13.5 |
104 |
39.5 |
34 |
9 |
M12 |
7/16 |
SB208-24
SB206-25
SB206 |
FW208 |
0.8 |
| Bearing Unit NO. |
Shaft Dia d |
Dimensions(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing
Wt (kg) |
| (in) |
(mm) |
a |
e |
i |
l |
s |
g |
b |
z |
Bi |
n |
(mm) |
(in) |
SBFX201-8
SBFX202-9
SBFX202-10
SBFX203-11
SBFX201
SBFX202
SBFX203 |
1/2
9/16
5/8
11/16
|
12
15
17 |
81 |
63.5 |
9.5 |
18 |
8 |
9.5 |
56 |
25.5 |
22 |
6 |
M6 |
1/4 |
SB201-8
SB202-9
SB202-10
SB203-11
SB201
SB202
SB203 |
FX201
FX202
FX203 |
0.1 |
SBFX204-12
SBFX204 |
3/4 |
20 |
90 |
71.5 |
11 |
20 |
10 |
11 |
61 |
28.7 |
24.7 |
7 |
M8 |
5/16 |
SB204-12
SB204 |
FX204 |
0.2 |
SBFX205-13
SBFX205-14
SBFX205-15
SBFX205-16
SBFX205 |
13/16
7/8
15/16
1
|
25 |
95 |
76 |
11 |
20 |
10 |
11 |
64 |
30.5 |
27 |
7.5 |
M8 |
5/16 |
SB205-13
SB205-14
SB205-15
SB205-16
SB205 |
FX205 |
0.2 |
SBFX206-17
SBFX206-18
SBFX206-19
SBFX206-20
SBFX206 |
1-1/16
1-1/8
1-3/16
1-1/4
|
30 |
113 |
90.5 |
12 |
22.5 |
12 |
12 |
76 |
34 |
30 |
8 |
M8 |
5/16 |
SB206-17
SB206-18
SB206-19
SB206-20
SB206 |
FX206 |
0.3 |
SBFX207-20
SBFX207-21
SBFX207-22
SBFX207-23
SBFX207 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
122 |
100 |
13 |
24 |
12 |
13 |
89 |
36.5 |
32 |
8.5 |
M8 |
5/16 |
SB207-20
SB207-21
SB207-22
SB207-23
SB207 |
FX207 |
0.42 | |
|
| |
|
