Product Details |
|
 |

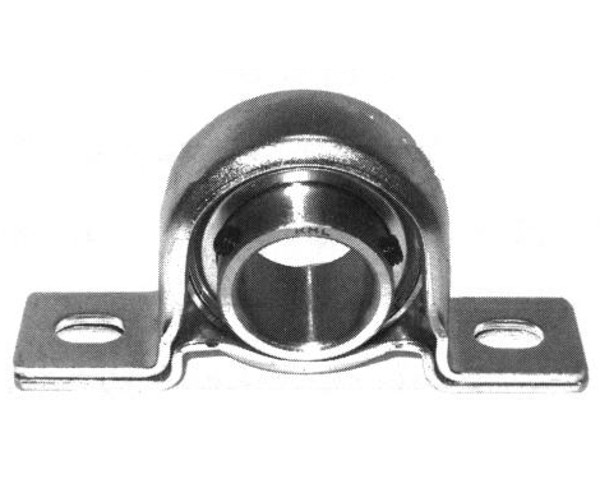

SBPP200 SBPFL200 Series |
|
|
|
| Model: |
| Light Duty Pressed Steel 2 Piece Housing
Light Weight Snap Together Design
Set Screw Locking
Narrow Inner Race/Flush Back Bearing
Full Cover Steel Seals
Non Greaseable
|
|
| |
|
| Bearing Unit NO. |
Shaft Dia d |
Dimensions(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing
Wt (Kg) |
| (in) |
(mm) |
h |
a |
e |
b |
s |
t |
w |
n |
Bi |
(mm) |
(in) |
SBPP201-8
SBPP202-9
SBPP202-10
SBPP203-11
SBPP201
SBPP202
SBPP203 |
1/2
9/16
5/8
11/16
|
12
15
17 |
22.2 |
86 |
68 |
25 |
9.5 |
3.2 |
44 |
6 |
22 |
M8 |
5/16 |
SB201-8
SB202-9
SB202-10
SB203-11
SB201
SB202
SB203 |
PP203 |
0.16 |
SBPP204-12
SBPP204 |
3/4
|
20 |
25.4 |
98 |
76 |
32 |
9.5 |
3.2 |
50 |
7 |
25 |
M8 |
5/16 |
SB204-12
SB204 |
PP204 |
0.21 |
SBPP205-13
SBPP205-14
SBPP205-15
SBPP205-16
SBPP205 |
13/16
7/8
15/16
1
|
25 |
28.6 |
108 |
86 |
32 |
11.5 |
4 |
56 |
7.5 |
27 |
M10 |
3/8 |
SB205-13
SB205-14
SB205-15
SB205-16
SB205 |
PP205 |
0.29 |
SBPP206-17
SBPP206-18
SBPP206-19
SBPP206-20
SBPP206 |
1-1/16
1-1/8
1-3/16
1-1/4
|
30 |
33.3 |
117 |
95 |
38 |
11.5 |
4 |
66 |
8 |
30 |
M10 |
3/8 |
SB206-17
SB206-18
SB206-19
SB206-20
SB206 |
PP206 |
0.45 |
SBPP207-20
SBPP207-21
SBPP207-22
SBPP207-23
SBPP207 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
39.7 |
129 |
106 |
42 |
11.5 |
4.6 |
78 |
8.5 |
32 |
M10 |
3/8 |
SB207-20
SB207-21
SB207-22
SB207-23
SB207 |
PP207 |
0.61 |
| Bearing Unit NO. |
Shaft Dia
d |
Dimensions(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing
Wt (kg) |
| (in) |
(mm) |
a |
e |
l |
b |
t |
s |
n |
Bi |
(mm) |
(in) |
SBPFL201-8
SBPFL202-9
SBPFL202-10
SBPFL203-11
SBPFL201
SBPFL202
SBPFL203 |
1/2
9/16
5/8
11/16
|
12
15
17 |
81 |
63 |
14 |
59 |
2 |
7 |
6 |
22 |
M6 |
1/4 |
SB201-8
SB202-9
SB202-10
SB203-11
SB201
SB202
SB203 |
PFL203 |
0.19 |
SBPFL204-12
SBPFL204 |
3/4
|
20 |
90 |
71 |
16 |
67 |
2 |
9 |
7 |
25 |
M8 |
5/16 |
SB204-12
SB204 |
PFL204 |
0.24 |
SBPFL205-14
SBPFL205-15
SBPFL205-16
SBPFL205 |
7/8
15/16
1
|
25 |
95 |
76 |
18 |
71 |
2 |
9 |
7.5 |
27 |
M8 |
5/16 |
SB205-14
SB205-15
SB205-16
SB205 |
PFL205 |
0.28 |
SBPFL206-18
SBPFL206-19
SBPFL206-20
SBPFL206 |
1-1/8
1-3/16
1-1/4
|
30 |
113 |
90 |
18 |
84 |
2.6 |
11 |
8 |
30 |
M10 |
3/8 |
SB206-18
SB206-19
SB206-20
SB206 |
PFL206 |
0.38 |
SBPFL207-20
SBPFL207-21
SBPFL207-22
SBPFL207-23
SBPFL207 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
122 |
100 |
20 |
94 |
2.6 |
11 |
8.5 |
32 |
M10 |
3/8 |
SB207-20
SB207-21
SB207-22
SB207-23
SB207 |
PFL207 |
0.65 | |
|
| |
|
