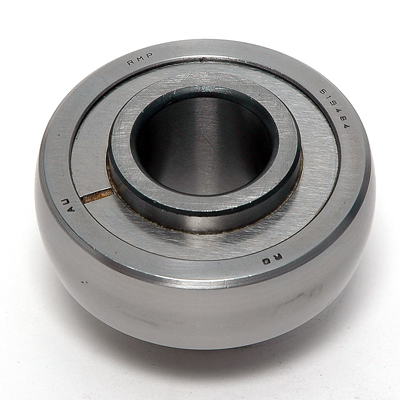

Spherical Outer Ring Deep Groove Ball Bearings

Model:

1,Suffix NPPB:Spherical outer ring, two seals

Dimensions(mm)			Code	rs	Mass（kg）	Load rating（kN）		Limiting speed
d	D	B	Code	min		Cr	Cor	min-1
10	26	8	6000NPPB	0.3	0.019	4.55	1.96	34000
	30	9	6200NPPB	0.6	0.032	6	2.6	32000
	35	11	6300NPPB	0.6	0.053	6	2.6	17000
12	28	8	6001NPPB	0.3	0.021	5.1	2.36	32000
	32	10	6201NPPB	0.6	0.037	6.95	3.1	30000
	37	12	6301NPPB	1	0.06	9.65	4.15	53000
15	32	9	6002NPPB	0.3	0.03	5.6	2.85	30000
	35	11	6202NPPB	0.6	0.045	7.8	3.75	26000
	42	13	6302NPPB	1	0.082	11.4	5.4	43000
17	35	10	6003NPPB	0.3	0.039	6	3.25	28000
	40	12	6203NPPB	0.6	0.066	9.5	4.75	22000
	47	14	6303NPPB	1	0.115	13.4	6.55	19000
	62	17	6403NPPB	1.1	0.27	22.4	11.4	28000
20	42	12	6004NPPB	0.6	0.069	9.3	5	20000
	47	14	6204NPPB	1	0.106	12.7	6.55	18000
	52	15	6304NPPB	1.1	0.144	16	7.8	34000
	72	19	6404NPPB	1.1	0.4	30.5	15	26000
25	47	12	6005NPPB	0.6	0.08	10	5.85	36000
	52	15	6205NPPB	1	0.128	14	7.8	17000
	62	17	6305NPPB	1.1	0.232	22.4	11.4	28000
	80	21	6405NPPB	1.5	0.53	36	19.3	22000
30	55	13	6006NPPB	1	0.116	12.7	8	32000
	62	16	6206NPPB	1	0.199	19.3	11.2	14000
	72	19	6306NPPB	1.1	0.36	29	16.3	24000
	90	23	6406NPPB	1.5	0.735	42.5	23.2	19000
35	62	14	6007NPPB	1	0.155	16	10.2	28000
	72	17	6207NPPB	1.1	0.288	25.5	15.3	24000
	80	21	6307NPPB	1.5	0.485	33.5	19	20000
	100	25	6407NPPB	1.5	0.952	53	31.5	16000
40	68	15	6008NPPB	1	0.19	16.6	11.6	26000
	80	18	6208NPPB	1.1	0.366	29	18	20000
	90	23	6308NPPB	1.5	0.63	42.5	25	18000
	110	27	6408NPPB	2	1.23	62	38	14000
45	75	16	6009NPPB	1	0.237	20	14.3	22000
	85	19	6209NPPB	1.1	0.398	31	20.4	19000
	100	25	6309NPPB	1.5	0.814	53	31.5	16000
	120	29	6409NPPB	2	1.53	76.5	47.5	13000
50	80	16	6010NPPB	1	0.261	20.8	15.6	20000
	90	20	6210NPPB	1.1	0.454	36.5	24	18000
	110	27	6310NPPB	2	1.07	62	38	14000
	130	31	6410NPPB	2.1	1.88	81.5	52	12000
55	90	18	6011NPPB	1.1	0.388	28.5	21.2	18000
	100	21	6211NPPB	1.5	0.601	43	29	16000
	120	29	6311NPPB	2	1.37	76.5	47.5	13000
	140	33	6411NPPB	2.1	2.29	93	60	11000
60	95	18	6012NPPB	1.1	0.414	29	23.2	16000
	110	22	6212NPPB	1.5	0.783	52	36	14000
	130	31	6312NPPB	2.1	1.73	81.5	52	12000
	150	35	6412NPPB	2.1	2.77	104	68	10000
