耐磨衬套
为了有效密封，径向轴密封件的接触面必须要光滑。 如果接触面磨损，密封件将无法继续实现其密封润滑剂和排除污染物的功能。
通常，污染物颗粒进入密封唇下面会划伤接触面，而且随着轴的旋转会形成一个沟痕。 当这种情况继续下去时，更多的污染物颗粒会进入系统或卡在密封件上，最终导致密封件所防护的部件出现故障。 对于这种情况，只更换密封件是不够的，还必须修复轴的表面。 为了修复轴，通常要拆解设备来更换新轴或研磨配合面直到它再次在规格范围内。

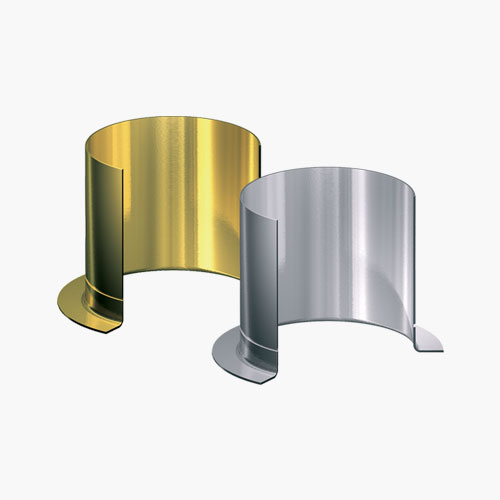

SKF Speedi-Sleeve 耐磨衬套（图 1）是一个有效的解决方案，为密封件提供了一个极好的配合表面，同时当轴磨损时，不必拆卸轴或更换密封件尺寸。 现在，SKF 已经开发了新一代 SKF Speedi-Sleeve 耐磨衬套，进一步提高了密封系统的性能。 使用 SKF Speedi-Sleeve 耐磨衬套，并配合 SKF 径向轴密封件，能够提高密封系统的一致性和耐用性，使客户从中获益。 这将确保一个更加稳定的维护计划，提高了系统寿命的预见性。 可提供用于轴径到约 203 mm（8 in.）的 SKF Speedi-Sleeve 耐磨衬套。 对于更大的轴径，SKF 提供 用于重工业应用的耐磨衬套 （图 2）。

99472

型号	轴径范围	公称尺寸	基本尺寸	D mm	b mm
99049	11.99	12.07	11.99	15.49	8.41
99050	12.65	12.75	12.7	15.49	8.74
99055	13.89	14	14	19.05	9.93
99056	14.22	14.38	14.3	19.05	9.93
99059	14.96	15.06	15.01	19.05	8.99
99062	15.82	15.93	15.88	19.05	10.31
99810	15.82	15.93	15.88	19.05	10.31
99058	15.9	16	16	18.24	11.13
99068	16.94	17.04	16.99	22.23	11
99060	17.32	17.42	17.37	22.86	11.13
99082	17.88	18.01	18.01	24.43	11
99076	19	19.1	19.05	24	11.13
99811	19	19.1	19.05	24	11.13
99081	19.28	19.33	19.3	23.83	11.13
99080	19.81	19.91	19.84	23.75	11.13
99078	19.94	20.04	19.99	23.62	11
99083	20.62	20.7	20.65	30.18	14.3
99086	21.77	21.87	21.82	29.34	9.53
99084	21.87	22	22	30.18	9.12
99085	21.87	22	22	30.18	11.99
99087	22.17	22.28	22.23	27.79	11.13
99812	22.17	22.28	22.23	27.79	11.13
99091	23.06	23.16	23.11	30.94	11.13
99860	23.06	23.16	23.11	30.94	11.13
99092	23.88	24	24	28.7	11.13
99094	24.54	24.64	24.61	28.7	11.13
99096	24.54	24.64	24.61	28.7	18.26
99098	24.94	25.04	24.99	33.02	11
99813	24.94	25.04	24.99	33.02	11
99814	25.35	25.45	25.4	30.96	11.13
99868	25.35	25.45	25.4	30.96	11.13
99103	25.88	26.01	26.01	33.35	11.99
99106	26.92	27.03	27	33.53	11.13
99815	26.92	27.03	27	33.53	11.13
99108	27.61	27.71	27.66	35.71	11.13
99111	27.94	28.04	27.99	34.93	12.7
99866	27.94	28.04	27.99	34.93	12.7
99112	28.52	28.63	28.58	38.1	11.13
99116	28.52	28.63	28.58	38.1	12.7
99816	28.52	28.63	28.58	38.1	11.13
99120	29.31	29.41	29.36	34.29	12.7
99865	29.31	29.41	29.36	34.29	12.7
99122	29.79	29.92	29.85	35.56	11.13
99114	29.95	30.07	30	35.56	11
99118	30.1	30.23	30.18	35.56	11.13
99123	30.89	31.04	30.96	39.7	11
99141	31.42	31.57	31.5	39.12	11.13
99125	31.67	31.83	31.75	38.1	11.13
99817	31.67	31.83	31.75	38.1	11.13
99128	31.93	32.08	32	38.1	11.13
99121	32.94	33.05	32.99	40.49	18.01
99129	33.22	33.38	33.35	40.64	9.53
99131	33.27	33.43	33.35	40.49	15.88
99818	33.27	33.43	33.35	40.49	15.88
99134	33.86	34.01	34.01	41.28	15.88
99133	34.82	34.98	34.93	41.61	11.13
99138	34.82	34.98	34.93	41.61	15.88
99819	34.82	34.98	34.93	41.61	15.88
99139	34.93	35.08	34.93	41.61	16
99820	34.93	35.08	34.93	41.61	16
99146	35.84	35.99	35.99	45.24	16.99
99143	36.37	36.53	36.53	45.24	17.48
99821	36.37	36.53	36.53	45.24	17.48
99144	36.45	36.6	36.53	45.24	12.7
99147	37.85	38	38	45.24	16.99
99149	38.02	38.18	38.1	45.24	17.48
99150	38.02	38.18	38.1	45.24	12.7
99822	38.02	38.18	38.1	45.24	17.48
99823	38.02	38.18	38.1	45.24	12.7
99152	38.61	38.76	38.68	47.22	14.3
99155	39.34	39.5	39.42	47.22	14.3
99156	39.6	39.75	39.67	47.22	17.48
99824	39.6	39.75	39.67	47.22	17.48
99159	39.78	39.93	39.85	47.22	19.05
99153	39.85	40.01	40.01	46.99	12.93
99157	39.93	40.08	40.08	46.99	16
99825	39.93	40.08	40.08	46.99	16
99160	40.69	40.84	40.77	49.23	16.28
99163	40.84	41	41	49.23	15.88
99161	41.2	41.35	41.28	47.63	11.13
99162	41.2	41.35	41.28	47.63	17.48
99826	41.2	41.35	41.28	47.63	17.48
99166	41.83	42.01	41.91	53.01	14.5
99169	41.83	42.01	41.91	53.01	17.5
99873	41.83	42.01	42.01	53.01	17.5
99165	41.99	42.14	42.06	53.01	17.5
99168	42.77	42.93	42.88	48.41	17.48
99167	42.8	42.95	42.88	48.41	11.13
99182	42.85	43	43	48.41	15.88
99171	43.56	43.71	43.66	51.59	17.48
99170	44.09	44.25	44.17	52.4	12.7
99172	44.37	44.53	44.45	52.2	12.7
99174	44.37	44.53	44.45	52.4	17.48
99175	44.37	44.53	44.45	52.4	22.23
99180	44.37	44.53	44.45	52.4	15.88
99827	44.37	44.53	44.45	52.4	17.48
99828	44.37	44.53	44.45	52.4	22.23
99176	44.73	44.88	44.86	52.4	17.48
99829	44.73	44.88	44.86	52.4	17.48
99177	44.93	45.09	45.01	53.01	16.99
99830	44.93	45.09	45.01	53.01	16.99
99179	45.16	45.31	45.24	53.98	20.32
99181	45.95	46.1	46.05	53.09	17.48
99831	45.95	46.1	46.05	53.09	17.48
99185	47.17	47.32	47.22	54.76	17.48
99186	47.4	47.55	47.45	55.58	26.04
99184	47.55	47.7	47.63	55.96	13.11
99187	47.55	47.7	47.63	55.96	17.48
99188	47.55	47.7	47.63	55.96	10.54
99190	47.55	47.7	47.63	55.96	7.49
99832	47.55	47.7	47.63	55.96	17.48
99189	47.93	48.08	48.03	56.01	16.97
99192	48.49	48.64	48.56	56.36	12.7
99193	49.12	49.28	49.23	56.36	17.48
99833	49.12	49.28	49.23	56.36	17.48
99052	49.91	50.06	50.01	56.49	16.97
99196	49.91	50.06	50.01	57	16.97
99198	50.22	50.37	50.29	58.75	17.88
99199	50.72	50.88	50.8	61.11	17.48
99200	50.72	50.88	50.8	61.11	25.4
99834	50.72	50.88	50.8	61.11	17.48
99835	50.72	50.88	50.8	61.11	25.4
99878	51.82	51.99	51.99	62.71	15.88
99205	52.25	52.4	52.4	62.71	23.83
99210	53.92	54.05	53.98	61.52	19.05
99212	53.95	54.1	53.98	61.52	23.83
99836	53.95	54.1	53.98	61.52	23.83
99215	54.91	55.07	54.99	62	22.99
99863	54.91	55.07	54.99	62	22.99
99218	55.52	55.68	55.58	63.5	23.83
99220	55.83	56.01	56.01	64.29	15.88
99224	55.83	56.01	56.01	64.29	23.77
99229	56.57	56.72	56.64	64.29	15.88
99230	56.57	56.72	56.64	64.29	23.01
99861	56.57	56.72	56.64	64.29	15.88
99226	56.82	56.97	56.9	65.1	22.86
99225	57.12	57.28	57.15	64.29	23.83
99227	57.12	57.28	57.15	64.29	11.13
99837	57.12	57.28	57.15	64.29	23.83
99838	57.12	57.28	57.15	64.29	11.13
99219	57.91	58.06	57.99	65.99	23.83
99231	58.65	58.8	58.75	68.28	23.83
99233	59.11	59.26	59.13	69.85	22.23
99235	59.92	60.07	59.99	70.74	22.99
99241	59.92	60.07	59.99	70.74	11.43
99869	59.92	60.07	59.99	70.74	22.99
99238	60.25	60.4	60.33	69.85	19.05
99237	60.3	60.45	60.33	69.85	23.83
99240	60.3	60.45	60.33	69.85	17.35
99839	60.3	60.45	60.33	69.85	23.83
99243	61.82	62	61.93	71.83	23.83
99244	61.82	62	62	71.83	15.88
99242	61.85	62	61.93	71.83	15.88
99249	63.22	63.37	63.3	73.03	23.83
99253	63.42	63.58	63.5	71.63	16.51
99248	63.5	63.65	63.5	71.83	16.66
99250	63.5	63.65	63.5	71.63	23.83
99840	63.5	63.65	63.5	71.63	23.83
99251	63.75	63.91	63.91	71.83	23.01
99254	64.92	65.07	65	72.39	22.99
99841	64.92	65.07	65	72.39	22.99
99256	65.02	65.18	65.1	73.43	23.83
99259	65.91	66.07	65.99	75.95	23.83
99261	66.5	66.65	66.57	77.39	23.83
99264	66.57	66.73	66.68	77.39	23.01
99260	66.6	66.75	66.68	77.39	15.88
99262	66.68	66.83	66.68	77.39	23.83
99842	66.68	66.83	66.68	77.39	23.83
99266	67.82	68	68	79.38	22.23
99268	69.27	69.42	69.34	79.38	23.01
99273	69.6	69.75	69.67	77.85	23.83
99274	69.72	69.88	69.85	79.38	23.83
99843	69.72	69.88	69.85	79.38	23.83
99267	69.77	69.93	69.85	78.11	41.28
99269	69.85	70	69.85	79.38	31.75
99272	69.85	70	69.85	79.38	14.3
99275	69.85	70	69.85	79.38	23.83
99844	69.85	70	69.85	79.38	23.83
99276	69.93	70.08	70	79.38	24
99281	71.35	71.5	71.45	80.98	17.48
99284	71.83	72.01	72.01	81.92	22.23
99870	71.83	72.01	72.01	81.92	22.23
99282	72.09	72.24	72.09	81.92	16.66
99845	72.09	72.24	72.09	81.92	16.66
99286	72.8	72.95	72.87	80.98	23.83
99287	72.97	73.13	73.03	81.76	23.83
99846	72.97	73.13	73.03	81.76	23.83
99290	74.6	74.75	74.63	84.94	16.28
99293	74.6	74.75	74.68	84.94	23.83
99847	74.6	74.75	74.63	84.94	23.83
99289	74.93	75.08	75.01	83.13	17.53
99294	74.93	75.08	75.01	83.95	26.01
99875	74.93	75.08	75.01	83.95	26.01
99292	75.49	75.59	75.54	82.17	25.4
99291	75.95	76.1	76.02	85.32	15.88
99298	75.95	76.1	76.02	85.32	17.48
99299	75.95	76.1	76.02	85.09	25.4
99296	76.12	76.28	76.2	82.3	23.83
99048	76.2	76.35	76.2	84.96	20.65
99300	76.2	76.35	76.2	82.17	25.4
99848	76.2	76.35	76.2	82.17	25.4
99301	76.4	76.56	76.48	85.22	15.88
99306	77.83	78	78	88.09	22.23
99311	79.25	79.4	79.38	89.69	20.65
99312	79.25	79.4	79.38	89.69	25.4
99849	79.25	79.4	79.38	89.69	25.4
99053	79.35	79.55	79.38	89.54	18.01
99313	79.81	80.01	80.01	89.92	22.5
99315	79.91	80.09	80.01	89.99	24
99317	79.91	80.09	80.01	89.99	15.01
99328	81.92	82.07	81.99	91.06	21.54
99322	82.47	82.63	82.55	91.29	25.4
99324	82.55	82.7	82.55	90.81	18.26
99325	82.55	82.7	82.55	91.06	25.4
99326	82.55	82.7	82.55	91.06	22.23
99850	82.55	82.7	82.55	90.81	18.26
99851	82.55	82.7	82.55	91.06	25.4
99331	84	84.15	84.07	93.68	25.4
99332	84.76	85.01	84.89	93.98	21.01
99333	84.76	85.01	84.89	93.98	24.99
99872	84.76	85.01	84.89	93.98	24.99
99334	84.79	85.01	85.01	90.93	12.67
99337	85.67	85.83	85.73	93.85	25.4
99338	85.67	85.83	85.73	93.68	12.7
99339	87.25	87.4	87.33	97.64	23.01
99481	87.8	88	88	95.28	34.27
99340	88.32	88.47	88.39	97.41	23.01
99346	88.82	88.98	88.9	97.64	20.65
99347	88.9	89.05	88.9	97.16	12.7
99350	88.9	89.05	88.9	97.64	25.4
99852	88.9	89.05	88.9	97.64	25.4
99349	88.93	89.08	89	97.64	20.65
99351	89.92	90.07	89.99	101.6	23.01
99352	89.92	90.07	89.99	101.6	13.67
99353	89.92	90.07	89.99	101.6	16.94
99354	89.92	90.07	89.99	101.6	27.99
99356	90.42	90.58	90.5	99.06	25.4
99360	91.9	92.05	91.97	102.39	25.4
99362	92.02	92.18	92.08	102.39	25.4
99363	92.02	92.18	92.08	102.24	15.88
99368	93.57	93.73	93.68	102.39	11.13
99365	93.6	93.75	93.68	102.24	23.83
99359	94.67	94.82	94.74	102.01	15.09
99366	94.67	94.82	94.74	102.24	23.01
99369	94.92	95.07	95	102.24	24
99364	95	95.15	95.07	102.49	15.09
99374	95	95.15	95.07	102.39	12.7
99376	95.15	95.3	95.22	102.24	17.48
99367	95.25	95.4	95.33	102.24	12.7
99372	95.25	95.4	95.33	102.11	22.23
99853	95.25	95.4	95.25	102.11	22.23
99386	98.25	98.4	98.32	106.3	25.4
99387	98.37	98.53	98.43	107.16	25.4
99393	99.95	100.1	100.03	109.55	25.4
99854	99.95	100.1	100.03	109.55	25.4
99395	101.55	101.75	101.6	111.13	18.42
99399	101.55	101.75	101.6	111.13	25.4
99400	101.55	101.75	101.6	111.13	19.69
99401	101.55	101.75	101.6	111.13	15.88
99855	101.55	101.75	101.6	111.13	25.4
99409	103.89	104.09	103.99	112.73	24
99412	104.7	104.9	104.78	113.54	25.4
99413	104.9	105.11	105	113.54	23.19
99418	106.25	106.45	106.38	114.3	25.4
99423	107.34	107.54	107.54	117.09	23.01
99424	107.9	108.1	107.95	117.09	25.4
99434	109.78	110.01	110.01	124.99	14.96
99435	109.91	110.11	109.93	124.99	16.51
99437	111	111.2	111.13	120.65	25.4
99438	111.79	111.99	111.99	120.65	22.5
99439	112.62	112.83	112.73	122.25	29.01
99450	114.2	114.4	114.3	124.46	25.4
99856	114.2	114.4	114.3	123.19	25.4
99452	114.88	115.09	115.01	127	23.83
99463	117.37	117.58	117.48	128.6	31.75
99465	117.37	117.58	117.48	127	15.88
99468	119	119.2	119.08	128.6	25.4
99471	119.89	120.09	119.99	129.79	11
99473	119.89	120.09	119.99	129.79	24.99
99475	120.55	120.75	120.65	127	19.05
121.89	122.1	122	131.5	24
99487	123.72	123.93	123.83	133.35	19.05
99490	124.89	125.1	124.99	137.16	14
99492	124.89	125.1	124.99	137.16	32
99498	126.95	127.15	127	137.16	22.23
99499	126.95	127.15	127	136.91	25.4
99501	126.95	127.15	127	137.16	17.3
99857	126.95	127.15	127	137.16	22.23
99858	126.95	127.15	127	136.91	25.4
99482	127.8	128	128	135.26	34.27
99494	129.79	130	129.9	139.52	23.83
99491	129.97	130.18	130.18	139.52	25.3
99874	129.97	130.18	130	139.52	25.3
99513	130.05	130.25	130.18	139.7	25.4
99525	133.25	133.45	133.35	141.22	25.4
99533	134.8	135	134.9	145.67	25.4
99537	136.42	136.63	136.53	149.23	25.4
99548	138.02	138.23	138.13	146.05	42.88
99547	138.99	139.19	139.09	149.86	19.05
99549	139.65	139.85	139.7	150.83	25.4

SKF斯凯孚 耐磨衬套 SKF衬套，SKF原装进口产品，品质保证。大量现货库存，SKF耐磨衬套订货电话：13833078890

耐磨衬套
