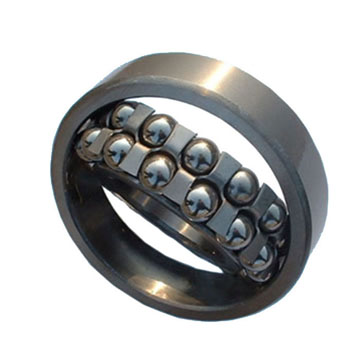

陶瓷轴承|陶瓷调心球轴承|陶瓷轴承厂家


Model:
陶瓷轴承|陶瓷调心球轴承|陶瓷轴承厂家 With two structures of bore cylindrical and conical, retainers made of steel sheet or synthetic tesins, the bearings are characteristic of their spherically formed outer ring raceways allowing for misalignment within 3 degree between inner ring and outer ring, so as to compensate concentricity and deflection errors.


陶瓷轴承|陶瓷调心球轴承|陶瓷轴承厂家With two structures of bore cylindrical and conical, retainers made of steel sheet or synthetic tesins, the bearings are characteristic of their spherically formed outer ring raceways allowing for misalignment within 3 degree between inner ring and outer ring, so as to compensate concentricity and deflection errors.

Bearing No.
Boundary dimensions(mm)
Other dimensions(mm)
Mass(kg)
d
D
B
r
da
Da
ra
ZrO2
Si3N4
135CE
5
19
6
0.3
7
17
0.3
0.007
0.004
126CE
6
19
6
0.3
8
17
0.3
0.007
0.004
127CE
7
22
7
0.3
9
20
0.3
0.011
0.006
108CE
8
22
7
0.3
10
20
0.3
0.011
0.006
129CE
9
26
8
0.6
13
22
0.6
0.017
0.009
1200CE
10
30
9
0.6
14
26
0.6
0.026
0.014
2200CE
30
14
0.6
14
26
0.6
0.036
0.019
1300CE
25
11
0.6
14
31
0.6
0.045
0.024
2300CE
25
17
0.6
14
31
0.6
0.065
0.035
1201CE
12
32
10
0.6
16
28
0.6
0.031
0.016
2201CE
32
14
0.6
16
28
0.6
0.041
0.022
1301CE
37
12
1
17
32
1
0.052
0.027
2301CE
37
17
1
17
32
1
0.073
0.039
1202CE
15
35
11
0.6
19
31
0.6
0.038
0.02
2202CE
35
14
0.6
19
31
0.6
0.046
0.025
1302CE
42
13
1
20
37
1
0.072
0.039
2302CE
42
17
1
20
37
1
0.088
0.047
1203CE
17
40
12
0.6
21
36
0.6
0.056
0.03
2203CE
40
16
0.6
21
36
0.6
0.068
0.036
1303CE
47
14
1
22
42
1
0.1
0.053
2303CE
47
19
1
22
42
1
0.12
0.065
1204CE
20
47
14
1
25
42
1
0.09
0.049
2204CE
47
18
1
25
42
1
0.11
0.057
1304CE
52
15
1.1
26.5
45.5
1
0.13
0.067
1304CE
52
21
1.1
26.5
45.5
1
0.16
0.086
1205CE
25
52
15
1
30
47
1
0.11
0.058
2205CE
52
18
1
30
47
1
0.13
0.067
1305CE
62
17
1.1
31.5
55.5
1
0.2
0.11
2305CE
62
24
1.1
31.5
55.5
1
0.26
0.14
1206CE
30
62
16
1
35
57
1
0.17
0.09
2206CE
62
20
1
35
57
1
0.2
0.11
1306CE
72
19
1.1
36.5
65.5
1
0.3
0.16
2306CE
72
27
1.1
36.5
65.5
1
0.38
0.21
1207CE
35
72
17
1.1
41.5
65.5
1
0.25
0.13
2207CE
72
23
1.1
41.5
65.5
1
0.31
0.17
1307CE
80
21
1.5
43
72
1.5
0.39
0.21
2307CE
80
31
1.5
43
72
1.5
0.52
0.28
1208CE
40
80
18
1.1
46.5
73.5
1
0.32
0.17
2208CE
80
23
1.1
46.5
73.5
1
0.39
0.21
1308CE
90
23
1.5
48
82
1.5
0.55
0.29
2308CE
90
33
1.5
48
82
1.5
0.71
0.38
1209CE
45
85
19
1.1
51.5
78.5
1
0.36
0.19
2209CE
85
23
1.1
51.5
78.5
1
0.42
0.22
1309CE
100
25
1.5
53
92
1.5
0.74
0.39
2309CE
100
36
1.5
53
92
1.5
0.95
0.5
1210CE
50
90
20
1.1
56.5
83.5
1
0.4
0.22
2210CE
90
23
1.1
56.5
83.5
1
0.45
0.24
1310CE
110
27
2
59
101
2
0.93
0.5
2310CE
110
40
2
59
101
2
1.26
0.67
1211CE
55
100
21
1.5
63
92
1.5
0.54
0.29
2211CE
100
25
1.5
63
92
1.5
0.62
0.33
1311CE
120
29
2
64
111
2
1.22
0.65
2311CE
120
43
2
64
111
2
1.62
0.86
1212CE
60
110
22
1.5
68
102
1.5
0.69
0.37
2212CE
110
28
1.5
68
102
1.5
0.84
0.45
1312CE
130
31
2.1
71
119
2
1.51
0.8
2312CE
130
46
2.1
71
119
2
2
1.07
1213CE
65
120
23
1.5
73
112
1.5
0.88
0.47
2213CE
120
31
1.5
73
112
1.5
1.12
0.6
1313CE
140
33
2.1
76
129
2
1.88
1.01
2313CE
140
48
2.1
76
129
2
2.48
1.33
1214CE
70
125
24
1.5
78
117
1.5
0.97
0.52
2214CE
125
31
1.5
78
117
1.5
1.17
0.62
1314CE
150
35
2.1
81
139
2
2.3
1.23
2314CE
150
51
2.1
81
139
2
3.25
1.74
1215CE
75
130
25
1.5
83
122
1.5
1.05
0.56
2215CE
130
31
1.5
83
122
1.5
1.25
0.66
1216CE
80
140
26
2
89
131
2
1.28
0.69
2216CE
140
33
2
89
131
2
1.55
0.82
1217CE
85
150
28
2
94
141
2
1.59
0.85
2217CE
150
36
2
94
141
2
1.94
1.03
