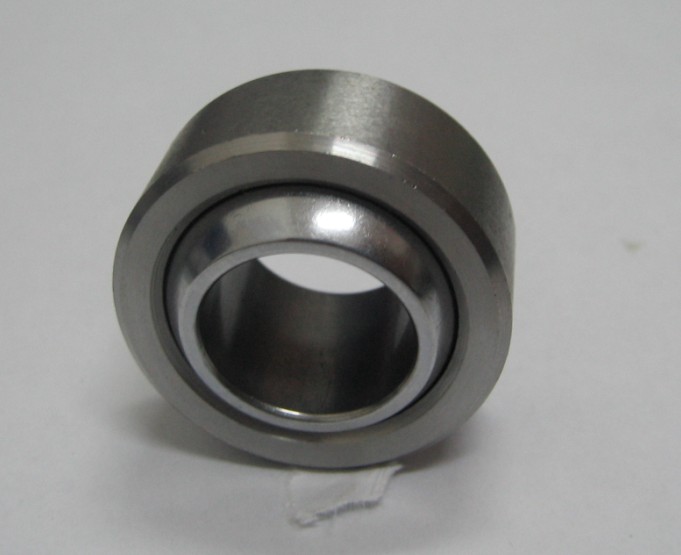

High Misalignment Capability Radial Bushings (inch)

MOSE P/N	INSIDE DIA.	OUTSIDE DIA.	WIDTH	OUTER RING WIDTH	RBC P/N	SKF P/N
GEGZ 31 ES	1.25	2.4375	1.39	1.125	BH 2024 L	GEZH 104 ES
GEGZ 38 ES	1.5	2.8125	1.58	1.312	BH 2428 L	GEZH 108 ES
GEGZ 44 ES	1.75	3.1875	1.82	1.5	BH 2832 L	GEZH 112 ES
GEGZ 50 ES	2	3.5625	2.07	1.687	BH 3236 L	GEZH 200 ES
GEGZ 57 ES	2.25	3.9375	2.318	1.875	BH 3640 L	GEZH 204 ES
GEGZ 63 ES	2.5	4.375	2.545	2.062	BH 4044 L	GEZH 208 ES
GEGZ 69 ES	2.75	4.75	2.79	2.25	BH 4448 L	GEZH 212 ES
GEGZ 76 ES	3	5.125	3.022	2.437	BH 4852 L	GEZH 300 ES
GEGZ 82 ES	3.25	5.5	3.265	2.625	BH 5256 L	GEZH 304 ES
GEGZ 88 ES	3.5	5.875	3.56	2.812	BH 5660 L	GEZH 308 ES
GEGZ 95 ES	3.75	6.25	3.738	3	BH 6064 L	GEZH 312 ES
GEGZ 101 ES	4	7	4.255	3.375	BH 6472 9L	GEZH 400 ES
GEGZ 114 ES	4.5	7.75	4.69	3.75	BH 7280 9L	GEZH 408 ES
GEGZ 139 ES	5.5	8.75	4.95	4.125	BH 8896 9L	GEZH 508 ES
Suffix 2RS for seals					Suffix SS for seals	Suffix 2RS for seals

Boundary dimensions(mm)								Mass	Bearing Number
d	D	B	C	dk	rs min	r1s min	α° ≈	Kg ≈	MOSE
31.75	61.913	35.306	28.575	54.7	0.6	1	15	0.454	GEGZ31ES-2RS
38.1	71.438	40.132	33.325	63.9	0.6	1	14	0.726	GEGZ38ES-2RS
44.45	80.963	46.228	38.1	73	0.6	1	14	1.14	GEGZ44ES-2RS
50.8	90.488	52.578	42.85	82	0.6	1	14	1.68	GEGZ50ES-2RS
57.15	100.013	58.877	47.625	92	0.6	1	14	2.01	GEGZ57ES-2RS
63.5	111.125	64.643	52.375	100	1	1	14	2.95	GEGZ63ES-2RS
69.85	120.65	70.866	57.15	109.5	1	1	14	3.63	GEGZ69ES-2RS
76.2	130.175	76.759	61.9	119	1	1	14	4.36	GEGZ76ES-2RS
82.55	139.7	82.931	66.675	128	1	1	14	5.31	GEGZ82ES-2RS
88.9	149.225	90.424	71.425	137	1	1	14	6.81	GEGZ88ES-2RS
95.25	158.75	94.945	76.2	146	1	1	14	8.85	GEGZ95ES-2RS
101.6	177.8	107.315	85.725	164.5	1	1	10	10.2	GEGZ101ES-2RS
114.3	196.85	119.126	95.25	183	1	1	10	13.6	GEGZ114ES-2RS
139.7	222.25	125.73	104.775	207	1	1	9	20.4	GEGZ139ES-2RS
