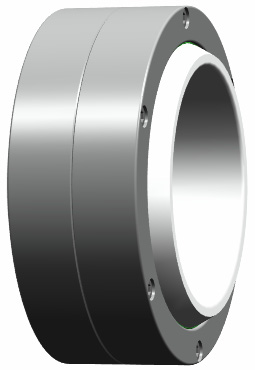

GEH...HT Series Spherical Plain Bearing

Model:

spherical plain bearings are employed in hydraulic cylinder rod ends, vehicle steering linkage suspensions, heavy equipment articulated joints, and other severe duty uses. Maintenance-free radial spherical plain bearings

Online Enquiry

Boundary dimensions(mm) Mass Bearing Number

d D B C dk rs
min r1s
min α°
≈ Kg
≈ MOSE

100 150 71 67 135 1 1 2 4.51 GEH100HT

110 160 78 74 145 1 1 2 5.35 GEH110HT

120 180 85 80 160 1 1 2 7.96 GEH120HT

140 210 100 95 185 1 1 2 13 GEH140HT

160 230 115 109 210 1 1 2 16.6 GEH160HT

180 260 128 122 240 1.1 1.1 2 24.4 GEH180HT

200 290 140 134 260 1.1 1.1 2 33.5 GEH200HT

220 320 155 148 290 1.1 1.1 2 45.8 GEH220HT

240 340 170 162 310 1.1 1.1 2 53.7 GEH240HT

260 370 185 175 340 1.1 1.1 2 69.5 GEH260HT

280 400 200 190 370 1.1 1.1 2 89.5 GEH280HT

300 430 212 200 390 1.1 1.1 2 110 GEH300HT

320 460 230 218 414 1.1 3 2 135 GEH320HT

340 480 243 230 434 1.1 3 2 150 GEH340HT

360 520 258 243 474 1.1 4 2 200 GEH360HT

380 540 272 258 494 1.5 4 2 220 GEH380HT

400 580 280 265 514 1.5 4 2 275 GEH400HT

420 600 300 280 534 1.5 4 2 300 GEH420HT

440 630 315 300 574 1.5 4 2 360 GEH440HT

460 650 325 308 593 1.5 4 2 380 GEH460HT
