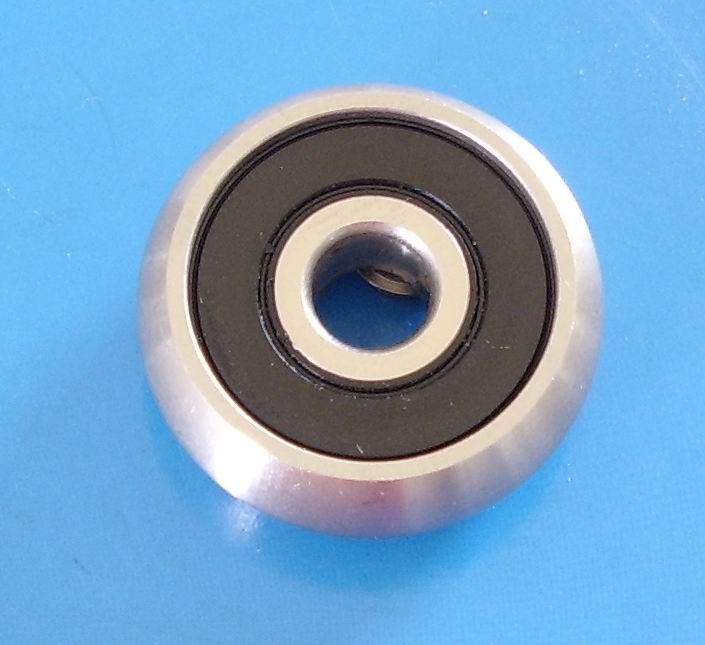

Stainless steel external sphere ball bearings

Model:

Stainless steel bearings can work well under such enviroment where is moisture, corrosive and abrasive. They are widly used for food and beverage processing machinery, medical appliances and medicine equipments.Some time they call it corrosion resistant bearings, waterproof bearings, underwater bearings,non magnetic bearings.

Online Enquiry

Bearing NO.	Bore (mm)	Dimensions(mm)							Weight (kg)
Bearing NO.	Bore (mm)	D	Bi	Be	n	m	G	ds	Weight (kg)
SSSB201-8 SSSB201 SSSB202-9 SSSB202-10 SSSB202 SSSB203-11 SSSB203	12.7 12 14.2875 15.875 15 17.4625 17	40	22	12	6	16	4.5	M5P0.8	0.08 0.07 0.065
SSSB204-12 SSSB204	20	47	25	14	7	18	4.5	M5P0.8	0.12
SSSB205-14 SSSB205-15 SSSB205 SSSB205-16	22.225 23.8125 25.4 25	52	27	15	7.5	19.5	5	M6P0.75	0.16
SSSB206-18 SSSB206 SSSB206-19	28.575 31.75 30.1625	62	30	16	8	22	5.5	M6P0.75	0.25
SSSB207-20 SSSB207-21 SSSB207-22 SSSB207 SSSB207-23	31.75 33.3375 34.925 35 36.5125	72	32	17	8.5	23.5	6	M8P1.0	0.37
SSSB208-24 SSSB208-25 SSSB208	38.1 39.6875 40	80	34	18	9	25	8	M8P1.0	0.45
SSSB209-26 SSSB209-27 SSSB209-28 SSSB209	41.275 42.8625 44.45 45	85	41.2	19	0.2	31	8	M8P1.0	0.8
SSSB210-29 SSSB210-30 SSSB210-31 SSSB210-32 SSSB210	46.0375 47.625 49.2125 50.8 50	90	43.5	20	10.9	32.6	9	M8P1.0	0.87
SSSB211-32 SSSB211-33 SSSB211-34 SSSB211-35 SSSB211	50.8 52.3875 53.975 55.5625 55	100	45.3	21	11.8	33.5	10	M8P1.0	1.1
SSSB212-36 SSSB212-37 SSSB212-38 SSB212-39 SSSB212	57.15 58.7375 60.325 61.9125 60	110	53.7	22	14.9	38.8	10	M10P1.25	1.3
SSUC201-8 SSUC201 SSUC202-9 SSUC202-10 SSUC202 SSUC203-11 SSUC203	12.7 12 14.2875 15.875 15 17.4625 17	47	31	17	12.7	18.3	5	M6P0.75	0.20 0.21 0.19 0.19 0.18
SSUC204-12 SSUC204	19.05 20	47	31	17	12.7	18.3	5	M6P0.75	0.16
SSUC205-13 SSUC205-14 SSUC205-15 SSUC205-16 SSUC205	20.6375 22.225 23.8125 25.4 25	52	34.1	17	14.3	19.8	5	M6P0.75	0.22 0.20 0.19 0.19
SSUC206-17 SSUC206-18 SSUC206-19 SSUC206-20 SSUC206	26.9875 28.575 30.1625 31.75 30	62	38.1	19	15.9	22.2	5	M6P0.75	0.33 0.31 0.31
SSUC207-20 SSUC207-21 SSUC207-22 SSUC207-23 SSUC207	31.75 33.3375 34.925 36.5125 35	72	42.9	20	17.5	25.4	7	M8P1.0	0.53 0.50 0.47 0.44 0.47
SSUC208-24 SSUC208-25 SSUC208	38.1 39.6875 40	80	49.2	22	19	30.2	8	M8P1.0	0.66 0.63 0.61
SSUC209-26 SSUC209-27 SSUC209-28 SSUC209	41.275 42.8625 44.45 45	85	49.2	22	19	30.2	8	M8P1.0	0.78 0.74 0.70 0.68
SSUC210-29 SSUC210-30 SSUC210-31 SSUC210-32 SSUC210	46.0375 47.625 49.2125 50.8 50	90	51.6	24	19	32.6	10	M10P1.25	0.83 0.78 0.77
SSUC211-32 SSUC211-33 SSUC211-34 SSUC211-35 SSUC211	50.8 52.3875 53.975 55.5625 55	100	55.6	25	22.2	33.4	10	M10P1.25	1.35 1.24 1.17 1.19
SSUC212-36 SSUC212-37 SSUC212-38 SSUC212-39 SSUC212	57.15 58.7375 60.325 61.9125 60	110	65.1	27	25.4	39.7	10	M10P1.25	1.65 1.50 1.43 1.52
