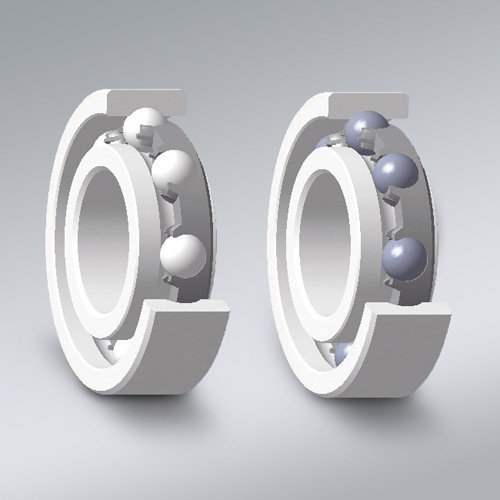

Deep groove ball bearings mainly take radial load as well as take moderate axial load. With less coefficient of friction, high limiting speed, large size range and diversified shape variation. Chrome ceramic hybrid 1) High precision bearings,P4 ,P5 and P6. 2) Rings are made of refined Chrome steel.AISI52100 (100Cr6) 3) Cage:Peek cage .(can assure constant working under 250 centigrade and peek cage also is the ideal cage for the high speed as it can provide the lubrication during  bearing working, and it has the property of self-lubrications.However for normal applications, steel cage and Nylon cage is enough. 4) Balls: we use G3,G5 high precision Si3N4 ball for the high speed. 5) Radial clearance: Normal C0,or C3. 6) Not only for the high speed, but also Hybrid bearings has the insulation functions. Hence for the small size of bore dia.40mm ,also can be used for the insulation bearing purpose. 7) Full ball hybrid also can be produce as per our production picture. Stainless steel hybrid Inner ring material: SUS 440, AISI 304, or AISI 316 Outer ring material: SUS 440C,AISI 304,or AISI 316 Ball: Ceramic ZRO2, OR SI3N4.(G5) Cage :Stainless steel, Nylon 66, PTFE,PEEK ,Brass or as per your request For the application of self-lubrication and high speed with our P5 precisions. Normal P0,P6 also available as per request.

Bearing No. Boundary dimensions(mm) Other dimensions(mm) Mass(kg) d D B r da da Da ra ZrO2 Si3N4 684CE 4 9 2.5 0.1 4.8 / 8.2 0.1 0.0005 0.0003 694CE 11 4 0.15 5.2 / 9.8 0.15 0.0013 0.0007 604CE 12 4 0.2 5.6 / 10.4 0.2 0.0017 0.0009 624CE 13 5 0.2 5.6 / 11.4 0.2 0.0023 0.0013 634CE 16 5 0.3 6 / 14 0.3 0.004 0.0022 685CE 5 11 3 0.15 6.2 / 9.8 0.15 0.0009 0.0005 695CE 13 4 0.2 6.6 / 11.4 0.2 0.0019 0.001 605CE 14 5 0.2 6.6 / 12.4 0.2 0.0027 0.0015 625CE 16 5 0.3 7 / 14 0.3 0.0038 0.0021 635CE 19 6 0.3 7 / 17 0.3 0.0066 0.0036 686CE 6 13 3.5 0.15 7.2 / 11.8 0.15 0.0015 0.0008 696CE 15 5 0.2 7.6 / 13.4 0.2 0.003 0.0016 606CE 17 6 0.3 8 / 15 0.3 0.0046 0.0025 626CE 19 6 0.3 8 / 17 0.3 0.0063 0.0034 636CE 22 7 0.3 8 / 20 0.3 0.0108 0.0058 687CE 7 14 3.5 0.15 8.2 / 12.8 0.15 0.0017 0.0009 697CE 17 5 0.3 9 / 15 0.3 0.004 0.0022 607CE 19 6 0.3 9 / 17 0.3 0.0059 0.0032 627CE 22 7 0.3 9 / 20 0.3 0.0098 0.0053 637CE 26 9 0.3 9 / 24 0.3 0.0185 0.01 688CE 8 16 4 0.2 9.6 / 14.4 0.2 0.0025 0.0014 698CE 19 6 0.3 10 / 17 0.3 0.0056 0.003 608CE 22 7 0.3 10 / 20 0.3 0.0093 0.005 628CE 24 8 0.3 10 / 22 0.3 0.013 0.0072 638CE 28 9 0.3 10 / 26 0.3 0.022 0.012 689CE 9 17 4 0.2 10.6 / 15.4 0.2 0.0027 0.0015 699CE 20 6 0.3 11 / 18 0.3 0.0065 0.0035 609CE 24 7 0.3 11 / 22 0.3 0.011 0.006 629CE 26 8 0.3 11 / 24 0.3 0.015 0.0081 639CE 30 10 0.6 13 / 26 0.6 0.028 0.015 6800CE 10 19 5 0.3 12 12 17 0.3 0.004 0.0021 6900CE 22 6 0.3 12 12.5 20 0.3 0.007 0.0038 6000CE 26 8 0.3 12 13 24 0.3 0.014 0.0075 6200CE 30 9 0.6 14 16 26 0.6 0.025 0.013 6300CE 35 11 0.6 14 16.5 31 0.6 0.04 0.022 6801CE 12 21 5 0.3 14 14 19 0.3 0.005 0.0025 6901CE 24 6 0.3 14 14.5 22 0.3 0.008 0.0042 16001CE 28 7 0.3 14 / 26 0.3 0.015 0.0079 6001CE 28 8 0.3 14 15.5 26 0.3 0.017 0.0092 6201CE 32 10 0.6 16 17 28 0.6 0.028 0.015 6301CE 37 12 1 17 18 32 1 0.046 0.025 6802CE 15 24 5 0.3 17 17 22 0.3 0.005 0.0029 6902CE 28 7 0.3 17 17 26 0.3 0.012 0.0063 16002CE 32 8 0.3 17 / 30 0.3 0.021 0.011 6002CE 32 9 0.3 17 19 30 0.3 0.024 0.013 6202CE 35 11 0.6 19 20.5 31 0.3 0.035 0.019 6302CE 42 13 1 20 22.5 37 1 0.064 0.035 6803CE 17 26 5 0.3 19 19 24 0.3 0.005 0.0029 6903CE 30 7 0.3 19 19.5 28 0.3 0.013 0.0071 16003CE 35 8 0.3 19 / 33 0.3 0.025 0.014 6003CE 35 10 0.3 19 21.5 33 0.3 0.032 0.017 6203CE 40 12 0.6 21 23.5 36 0.6 0.052 0.028 6303CE 47 14 1 22 25.5 42 1 0.087 0.047 6403CE 62 17 1.1 23.5 / 55.5 1 0.21 0.11 6804CE 20 32 7 0.3 22 22.5 30 0.3 0.013 0.007 6904CE 37 9 0.3 22 24 35 0.3 0.028 0.015 16004CE 42 8 0.3 22 / 40 0.3 0.037 0.02 6004CE 42 12 0.6 24 25.5 38 0.6 0.052 0.028 6204CE 47 14 1 25 26.5 42 1 0.082 0.045 6304CE 52 15 1.1 26.5 28 45.5 1 0.11 0.06 6404CE 72 19 1.1 26.5 / 65.5 1 0.31 0.17 6805CE 25 37 7 0.3 27 27 35 0.3 0.016 0.009 6905CE 42 9 0.3 27 28.5 40 0.3 0.032 0.018 16005CE 47 8 0.3 27 / 45 0.3 0.045 0.025 6005CE 47 12 0.6 29 30 43 0.6 0.061 0.033 6205CE 52 15 1 30 32 47 1 0.099 0.054 6305CE 62 17 1.1 31.5 36 55.5 1 0.18 0.098 6405CE 80 21 1.5 33 / 72 1.5 0.41 0.22 6806CE 30 42 7 0.3 32 32 50 1 0.018 0.01 6906CE 47 9 0.3 32 34 57 1 0.04 0.022 16006CE 55 9 0.3 32 42.5 65.5 1 0.067 0.036 6006CE 55 13 1 35 36.5 53 1 0.089 0.048 6206CE 62 16 1 35 38.5 60 1 0.15 0.083 6306CE 72 19 1.1 36.5 42.5 68.5 1 0.27 0.14 6406CE 90 23 1.5 54 / 82 2 0.57 0.31 6807CE 35 47 7 0.3 37 37 45 0.3 0.021 0.011 6907CE 55 10 0.6 39 39 51 0.6 0.058 0.031 16007CE 62 9 0.3 37 / 60 0.3 0.082 0.045 6007CE 62 14 1 40 41.5 57 1 0.12 0.063 6207CE 72 17 1.1 41.5 44.5 65.5 1 0.22 0.12 6307CE 80 21 1.5 43 47 72 1.5 0.36 0.19 6407CE 100 25 1.5 43 / 92 1.5 0.73 0.4 6808CE 40 52 7 0.3 42 42 50 0.3 0.02 0.013 6908CE 62 12 0.6 44 46 58 0.6 0.09 0.05 16008CE 68 9 0.3 42 / 66 0.3 0.1 0.05 6008CE 68 15 1 45 47.5 63 1 0.15 0.08 6208CE 80 18 1.1 46.5 50.5 73.5 1 0.28 0.15 6308CE 90 23 1.5 48 53 80 1.5 0.49 0.27 6408CE 110 27 2 49 / 101 2 0.946 0.513 6809CE 45 58 7 0.3 47 47.5 56 0.3 0.029 0.016 6909CE 68 12 0.6 49 50 64 0.6 0.097 0.053 16009CE 75 10 0.6 49 / 71 0.6 0.13 0.07 6009CE 75 16 1 50 53.5 70 1 0.19 0.1 6209CE 85 19 1.1 51.5 55.5 78.5 1 0.32 0.175 6309CE 100 25 1.5 53 61.5 92 1.5 0.64 0.345 6409CE 120 29 2 54 / 111 2 1.18 0.64 6810CE 50 65 7 0.3 52 52.5 63 0.3 0.038 0.021 6910CE 72 12 0.6 54 55 68 0.6 0.1 0.06 16010CE 80 10 0.6 54 / 76 0.6 0.13 0.07 6010CE 80 16 1 55 58.5 75 1 0.2 0.11 6210CE 90 20 1.1 56.5 60 83.2 1 0.35 0.19 6310CE 110 27 2 59 68 101 2 0.82 0.44 6410CE 130 31 2.1 61 / 119 2 1.45 0.78 6811CE 55 72 9 0.3 57 59 70 0.3 0.06 0.03 6911CE 80 13 1 60 61.5 75 1 0.15 0.08 16011CE 90 11 0.6 59 / 86 0.6 0.2 0.11 6011CE 90 18 1.1 61.5 64 83.5 1 0.29 0.16 6211CE 100 21 1.5 63 66.5 92 1.5 0.48 0.26 6311CE 120 29 2 64 72.5 111 2 1.05 0.57 6411CE 140 33 2.1 66 / 129 2 1.76 0.95 6812CE 60 78 10 0.3 62 64 76 0.3 0.08 0.04 6912CE 85 13 1 65 66 80 1 0.15 0.08 16012CE 95 11 0.6 64 / 91 0.6 0.22 0.12 6012CE 95 18 1.1 66.5 69 88.5 1 0.32 0.17 6212CE 110 22 1.5 68 74.5 102 1.5 0.6 0.33 6312CE 130 31 2.1 71 79 119 2 1.32 0.72 6412CE 150 35 2.1 71 �� 139 2 2.13 1.15 6813CE 65 85 10 0.6 69 69 81 0.6 0.1 0.05 6913CE 90 13 1 70 71.5 85 1 0.17 0.09 16013CE 100 11 0.6 69 / 96 0.6 0.23 0.13 6013CE 100 18 1.1 71.5 73 93.5 1 0.34 0.18 6213CE 120 23 1.5 73 80 112 1.5 0.77 0.42 6313CE 140 33 2.1 76 85.5 129 2 1.62 0.88 6814CE 70 90 10 0.6 74 74.5 86 0.6 0.1 0.056 6914CE 100 16 1 75 77.5 95 1 0.27 0.15 16014CE 110 13 0.6 74 / 106 0.6 0.34 0.18 6014CE 110 20 1.1 76.5 80.5 103.5 1 0.47 0.25 6214CE 125 24 1.5 78 84 117 1.5 0.84 0.45 6314CE 150 35 2.1 81 92 139 2 1.98 1.07 6815CE 75 95 10 0.6 79 79.5 91 0.6 0.11 0.06 6915CE 105 16 1 80 82 100 1 0.28 0.15 16015CE 115 13 0.6 79 / 111 0.6 0.36 0.19 6015CE 115 20 1.1 81.5 85.5 108.5 1 0.5 0.27 6215CE 130 25 1.5 83 90 122 1.5 0.92 0.5 6816CE 80 100 10 0.6 84 84.5 96 0.6 0.12 0.063 6916CE 110 16 1 85 87.5 105 1 0.3 0.16 16016CE 125 14 0.6 84 / 121 0.6 0.48 0.26 6016CE 125 22 1.1 86.5 91 118.5 1 0.67 0.36 6216CE 140 26 2 89 95.5 131 2 1.09 0.59 6817CE 85 110 13 1 90 , 90.5 105 1 0.2 0.11 6917CE 120 18 1.1 91.5 94.5 113.5 1 0.42 0.23 16017CE 130 14 0.6 89 / 126 0.6 0.5 0.27 6017CE 130 22 1.1 91.5 96 123.5 1 0.71 0.38 6217CE 150 28 2 94 102 141 2 1.35 0.73 6818CE 90 115 13 1 95 95.5 110 1 0.21 0.12 6918CE 125 18 1.1 96.5 98.5 118.5 1 0.45 0.24 16018CE 140 16 1 95 / 135 1 0.67 0.36 6018CE 140 24 1.5 98 103 132 1.5 0.92 0.5 6819CE 95 120 13 1 100 102 115 1 0.23 0.12 6919CE 130 18 1.1 101.5 104 123.5 1 0.46 0.25 16019CE 145 16 1 100 / 140 1 0.7 0.38 6019CE 145 24 1.5 103 109 137 1.5 0.95 0.51 6820CE 100 125 13 1 105 106 120 1 0.24 0.13 6920CE 140 20 1.1 106.5 111 133.5 1 0.64 0.35 16020CE 150 16 1 105 / 145 1 0.73 0.39 6020CE 150 24 1.5 108 113 142 1.5 0.99 0.54 6821CE 105 130 13 1 110 111 125 1 0.25 0.14 6921CE 145 20 1.1 111.5 116 138.5 1 0.66 0.36 6822CE 110 140 16 1 115 117 135 1 0.38 0.21 6922CE 150 20 1.1 116.5 121 143.5 1 0.69 0.37 6824CE 120 150 16 1 125 127 145 1 0.41 0.22
